Aluminum windows & doors

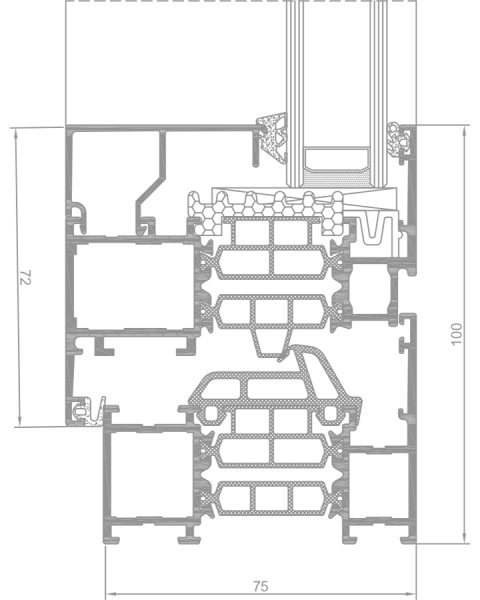

The GOLDMANN G-75 system uses modern insulating materials, which are currently a novelty on the market; next to the classic window central seal, an additional thermal seal has been designed; thanks to this solution, very high window tightness (air infiltration, water tightness) as well as innovative appearance and aesthetics were achieved

INSULATION THERMAL - Uw = od 0, 77 do 1,2 W/m²K

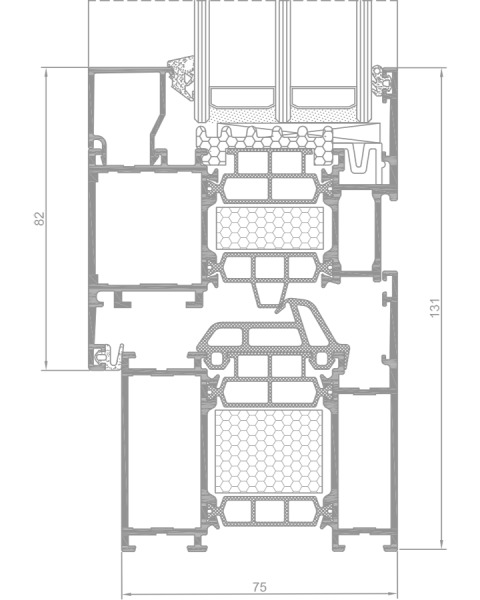

DEPTH OF THE FRAME - 75mm
LEAF DEPTH - 84mm
GLAZING - od 9 do 65 mm; Fix od 1 do 56 mm

ADVANTAGES:

• It is possible to choose different profile finishes (including renovation profiles), giving the window structure an individual character
• the system also allows for making an all-glass corner connection at an angle of 90 degrees
• GOLDMANN G - 75 window and door system sets a new standard for window insulation, while maintaining the highest ergonomics of use and modern aesthetics of the profile
• GOLDMANN G - 75 OUT option available (G OUT i, G OUT i+) – windows opening outwards

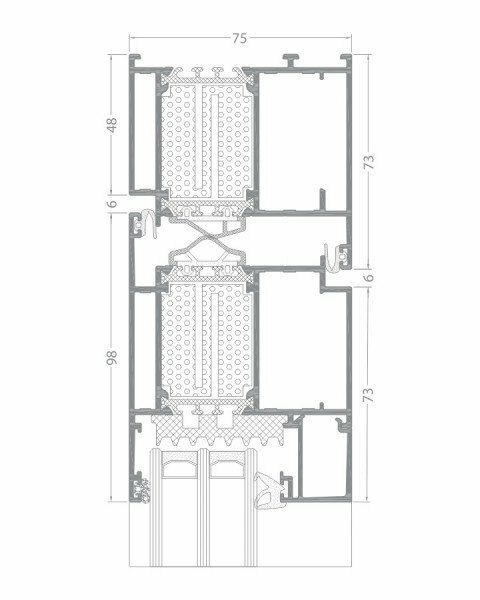

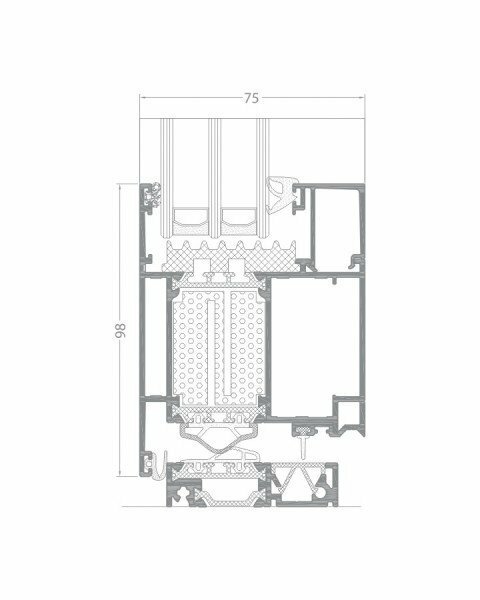

• Panel doors can also be made on the basis of the Genesis 75 door system
• GOLDMANN G - 75 is a system designed for designing window and door structures both in public buildings and in single or multi-family housing
• Wide range of colors - RAL palette (Qualicoat 1518), structural colors, Aliplast Wood Color Effect (Qualideco PL-0001), anode (Qualanod 1808), bicolor

High parameters of thermal insulation were obtained through the use of special thermal inserts inserted between thermal breaks and around the glass, improving the insulation of the section 0.2-0.4 W/m2K

INSULATION THERMAL - Uf = od 1, 41 W/m²K *; Uf = od 1, 08 W/m²K **
DEPTH OF THE FRAME - 75mm
LEAF DEPTH - 84mm
GLAZING - od 14 do 61 mm
*superial **superial i+

ADVANTAGES:

• glazing strips available in the following variants: rectangular and rounded
• profile shapes adapted to the assembly of various types of locking fittings, including hidden hinges and PVC fittings
• a wide range of glazing allows the use of all common types of single, double, acoustic or anti-burglary glass
• profile drainage available in two variants: traditional or hidden
• possibility of profile bending (exact profile specification and details regarding technical parameters of profile bending - available in the authorized zone at www.aliplast.pl)
• the option of a low threshold is available in single and double, rectangular balcony doors (structures with the use of dedicated profiles); additionally increasing the tightness parameters of the structure thanks to the use of the ACRS461 gasket
• the design of the SPi, SPi+ systems is based on the proven, extensive and valued Superial base system
• wide range of colors - RAL palette (Qualicoat 1518), structural colors, Aliplast Wood Color Effect (Qualideco PL-0001), anode (Qualanod 1808), bicolor

High parameters of thermal insulation were obtained thanks to the use of special thermal inserts inserted between thermal breaks and around the glass.

A wide range of glazing allows the use of all common types of single, double, acoustic or anti-burglary glass

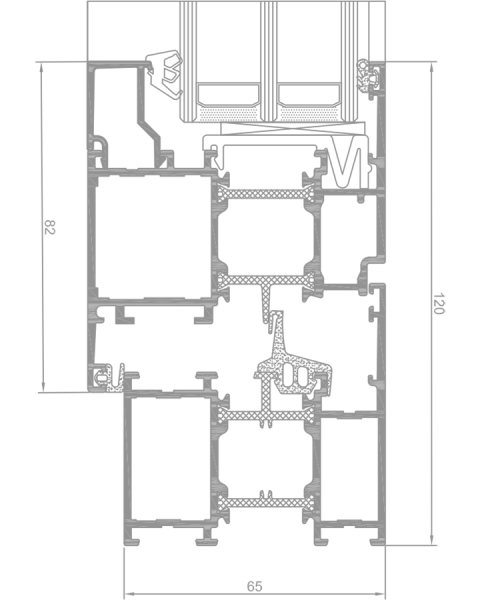

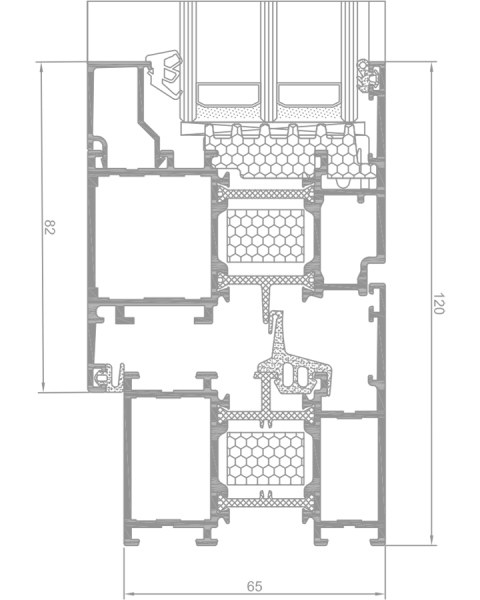

INSULATION THERMAL - Uf = od 1, 57 W/m²K *; Uf = od 1, 28 W/m²K **
DEPTH OF THE FRAME - 65mm
LEAF DEPTH - 74mm
GLAZING - od 4 do 51 mm
*superial **superial i+

ADVANTAGES:

• it is possible to install windows in facade systems
• glazing strips available in the following variants: rectangular and rounded
• a wide range of glazing allows the use of all common types of single, double, acoustic or anti-burglary glass
• profile drainage available in two variants: traditional or hidden
• possibility of profile bending (exact profile specification and details regarding technical parameters of profile bending - available in the authorized zone at www.aliplast.pl)

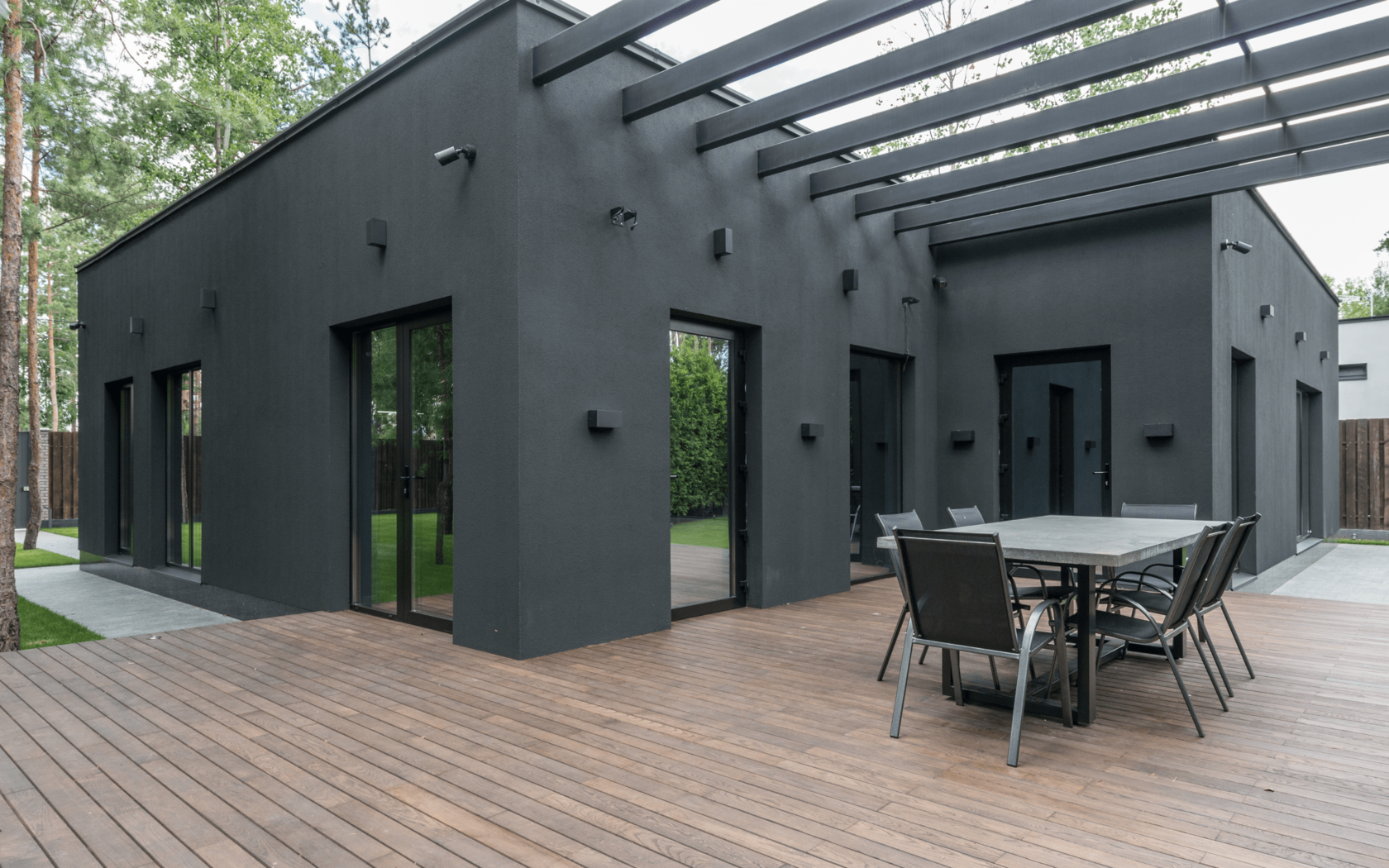

• the design of the IPi, IPi+ systems is based on the proven, extensive and valued Imperial base system
• wide range of colors - RAL palette (Qualicoat 1518), structural colors, Aliplast Wood Color Effect (Qualideco PL-0001), anode (Qualanod 1808), bicolor

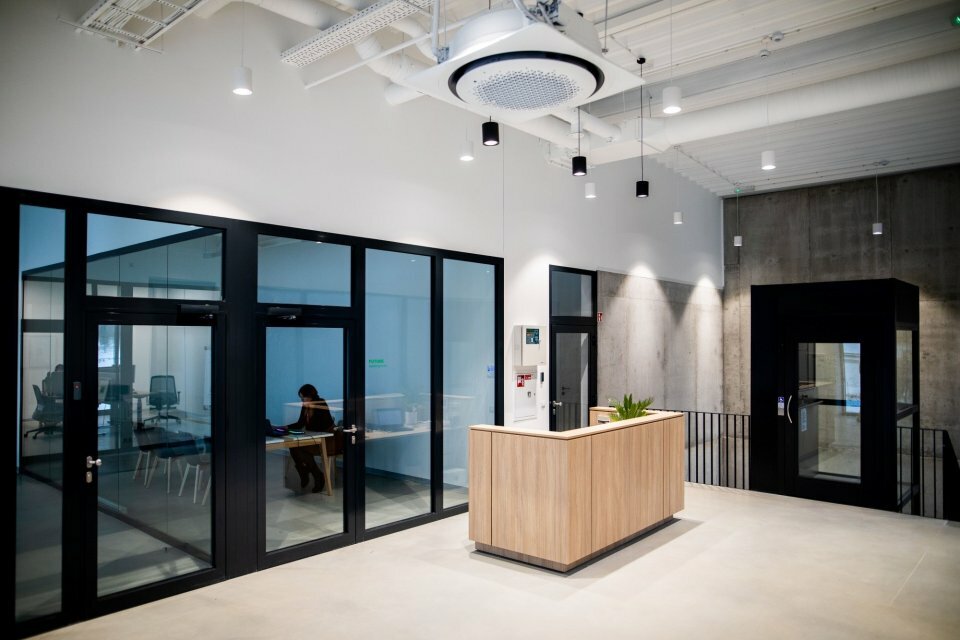

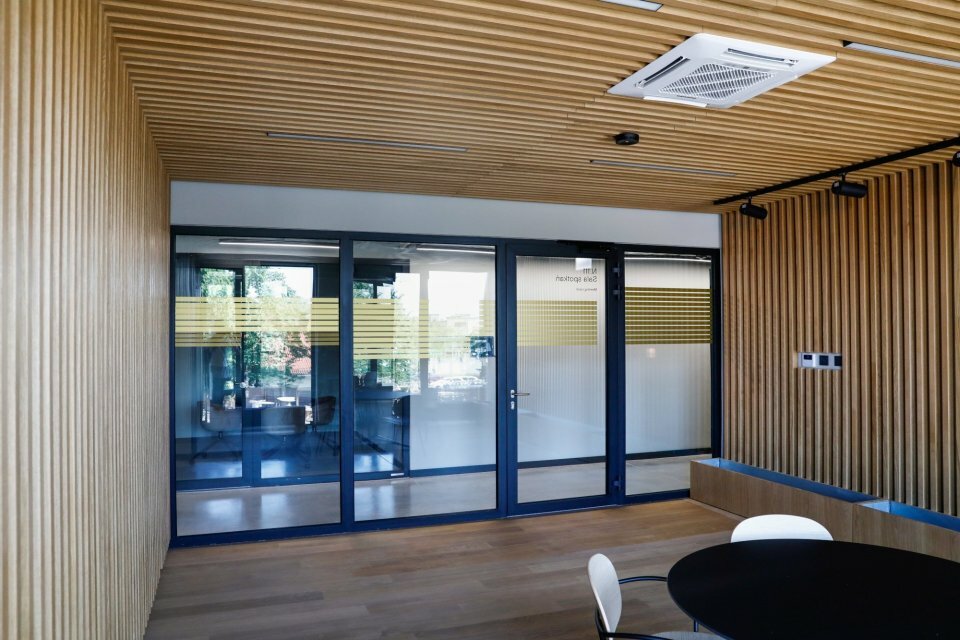

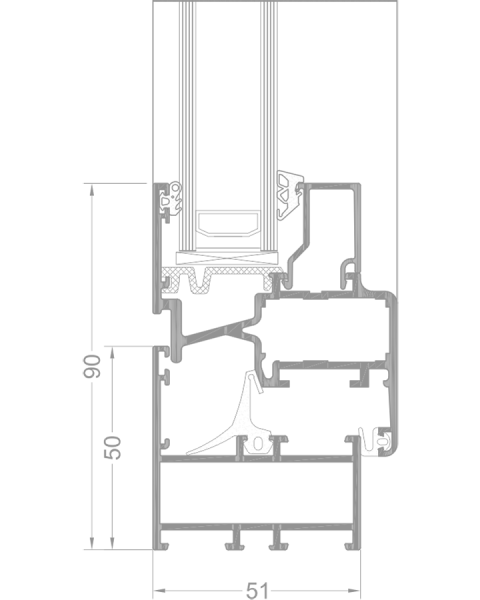

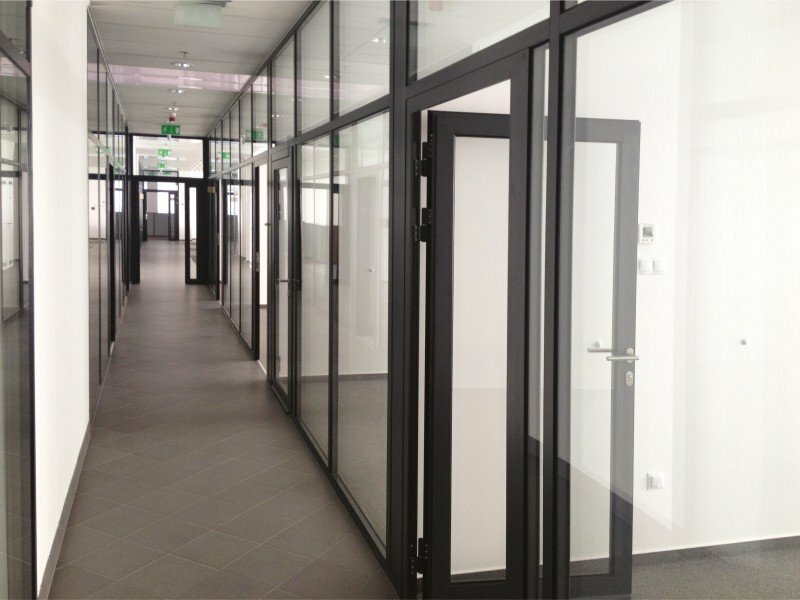

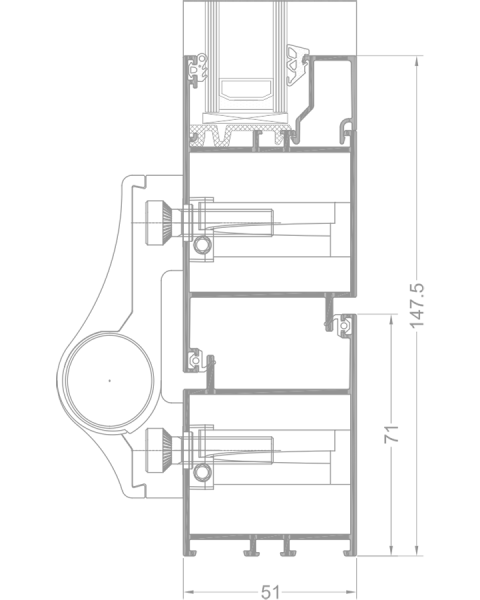

The system is designed to construct doors and windows without thermal insulation; allows you to design light, durable and functional buildings.

There is a possibility of constructing sliding and swinging doors, connecting walls at any angle and strengthening already made and even installed elements.

DEPTH OF THE FRAME - 51 mm
LEAF DEPTH - 60 mm
GLAZING - od 37 mm

ADVANTAGES:

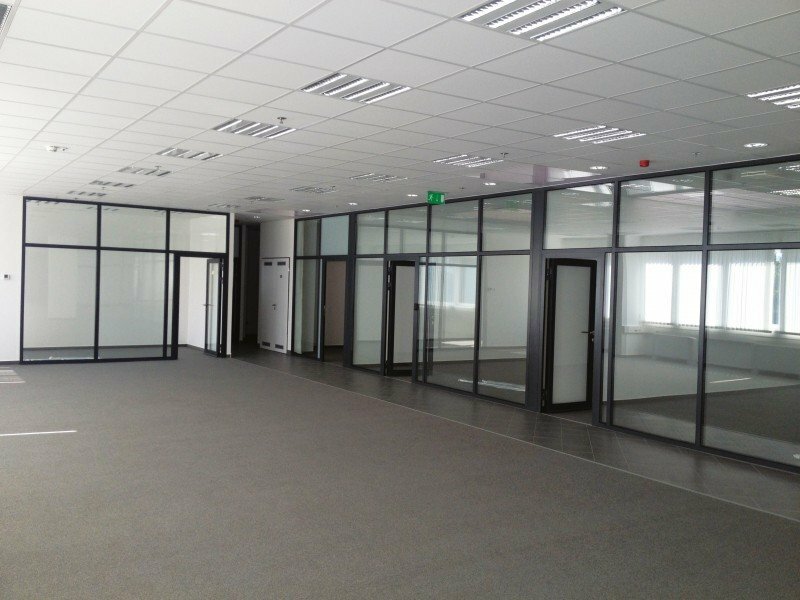

• it is possible to embed GOLDMANN ECO-51 doors into partition walls made of Econoline segments or into other walls of any structure
• an option with a hidden hinge / ROTO Solid C is available (the hinge has the FixClick function that allows for quick and safe mounting of the door leaf)
• the construction of the system allows the use of groove hinges, which are easier to install and more economical
• on the basis of this system, smoke-tight doors can be built - doors of the ECO system with a smoke-tight function meet the criteria of Sa, Sm smoke-tightness classes in accordance with PN-EN 13501-2+A1:2010)
• possibility of profile bending (exact profile specification and details regarding technical parameters of profile bending - available in the authorized zone at www.aliplast.pl)
• wide range of colors - RAL palette (Qualicoat 1518), structural colors, Aliplast Wood Color Effect (Qualideco PL-0001), anode (Qualanod 1808), bicolor

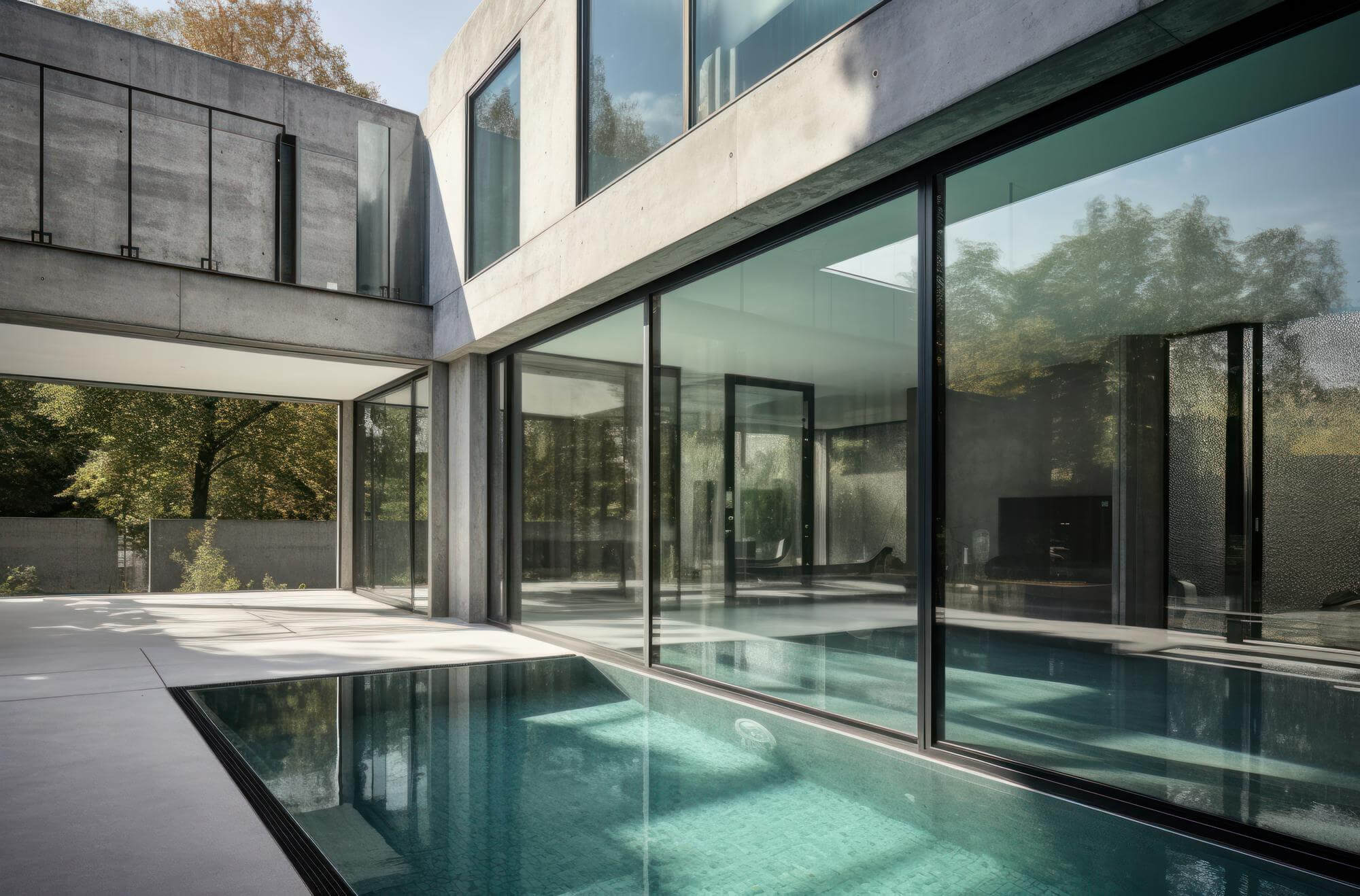

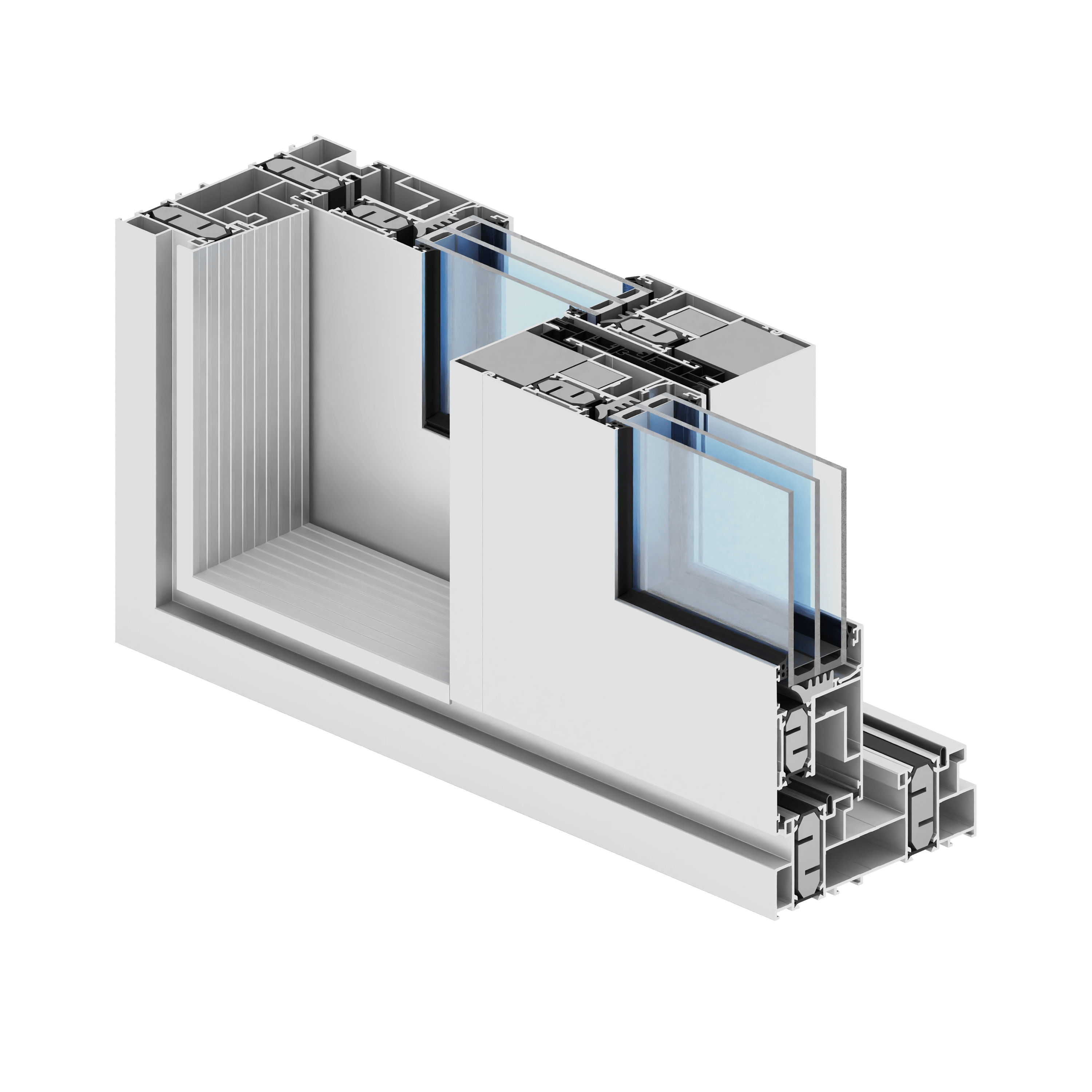

Thanks to its parameters, the GOLDMANN I+ system allows for designing constructions with very large dimensions of sliding leaves: the maximum dimensions of the structure possible to be made in this system are: the height of the leaf Hs=3300 mm and the width of the leaf Bs=3500.

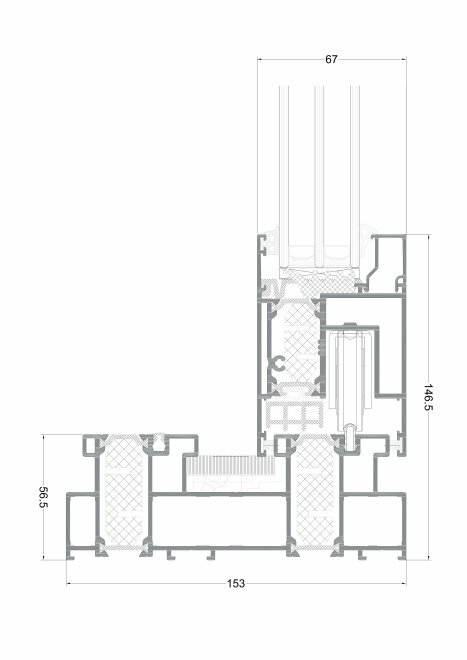

The GOLDMANN I+ system enables the construction of large and stable sliding windows and doors with a maximum sash weight of: 250 kg for the sliding option and 400 kg for the lift and slide option.

THERMAL INSULATION Uw = from 1.00 to 1.4 W/m²K
FRAME DEPTH from 153 mm to 239 mm
LEAF DEPTH 67 mm
GLAZING from 14 to 52 mm
LEAF WEIGHT up to 400 kg

ADVANTAGES:

• UG sliding structures are intended for use in residential buildings, mainly individual and public buildings
• system adapted to the latest requirements in the field of thermal insulation, aesthetics and safety: available system options:
• UG low threshold version,
• UG - 90° angled solution
• the profiles are adapted to the assembly of many fittings available on the market, locked manually and by means of automation
• the possibility of using various types of filling (single, double-chamber glass)
• system adapted to the latest requirements in the field of thermal insulation: the system uses: a thermal break with a width of 22 mm and 28 mm enriched with the addition of glass fiber, thermal inserts and glass inserts improving the thermal insulation of the cross-section
• available options: UG, UGi, UG i+ version
• wide range of colors - RAL palette (Qualicoat 1518), structural colors, Aliplast Wood Color Effect (Qualideco PL-0001), anode (Qualanod 1808), bicolor

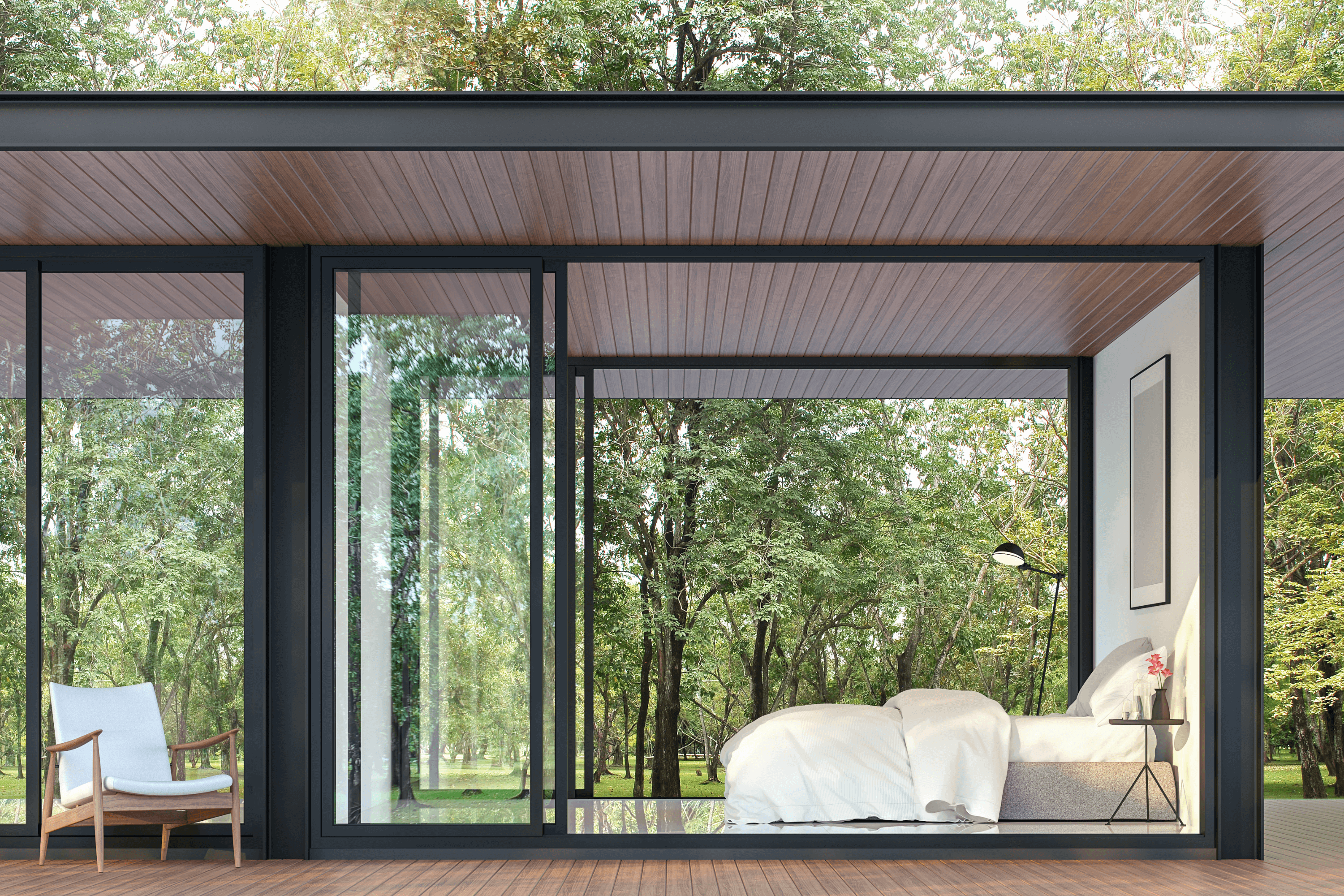

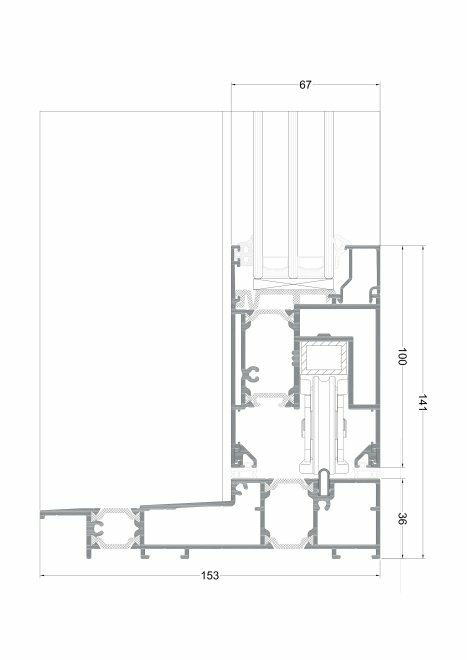

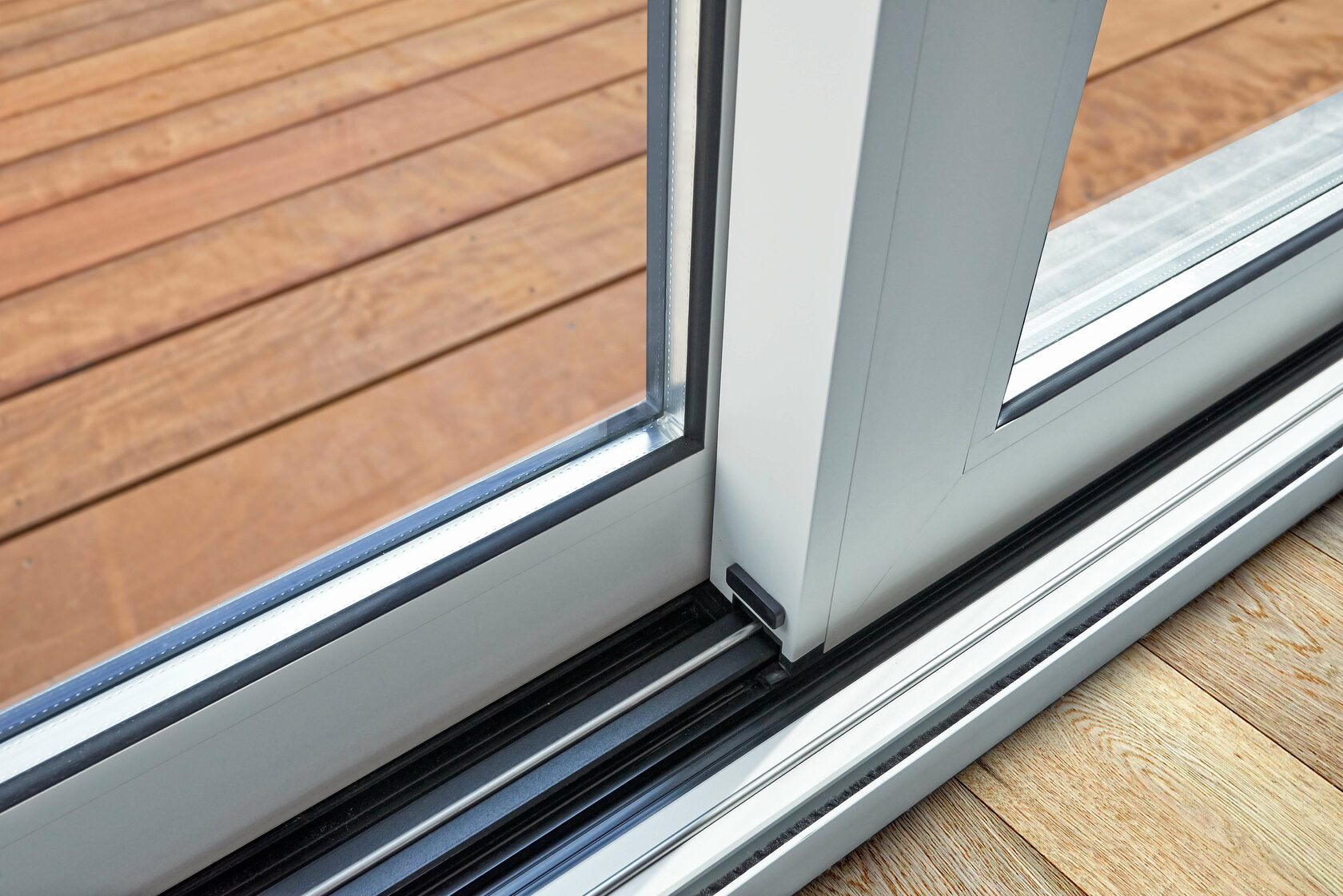

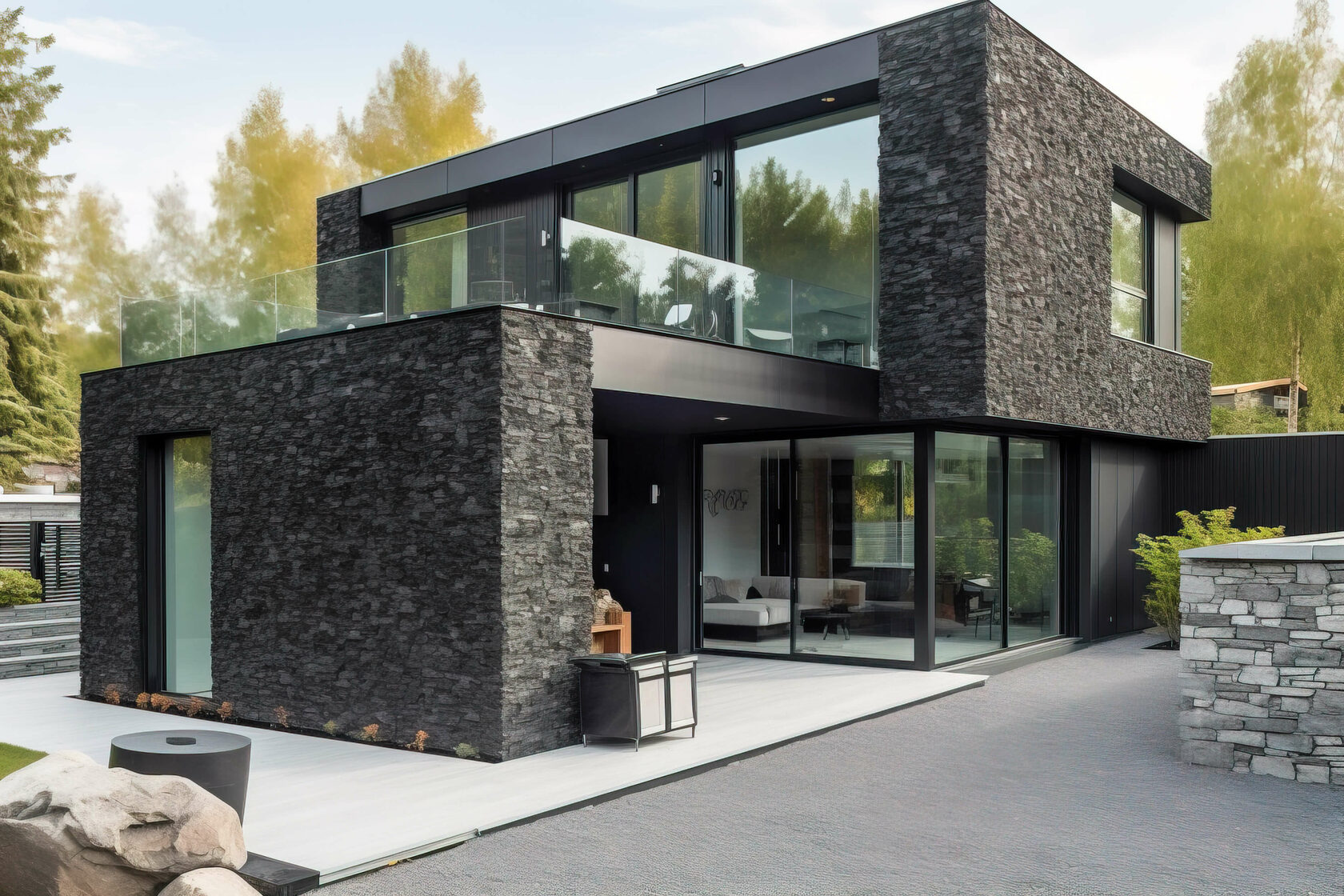

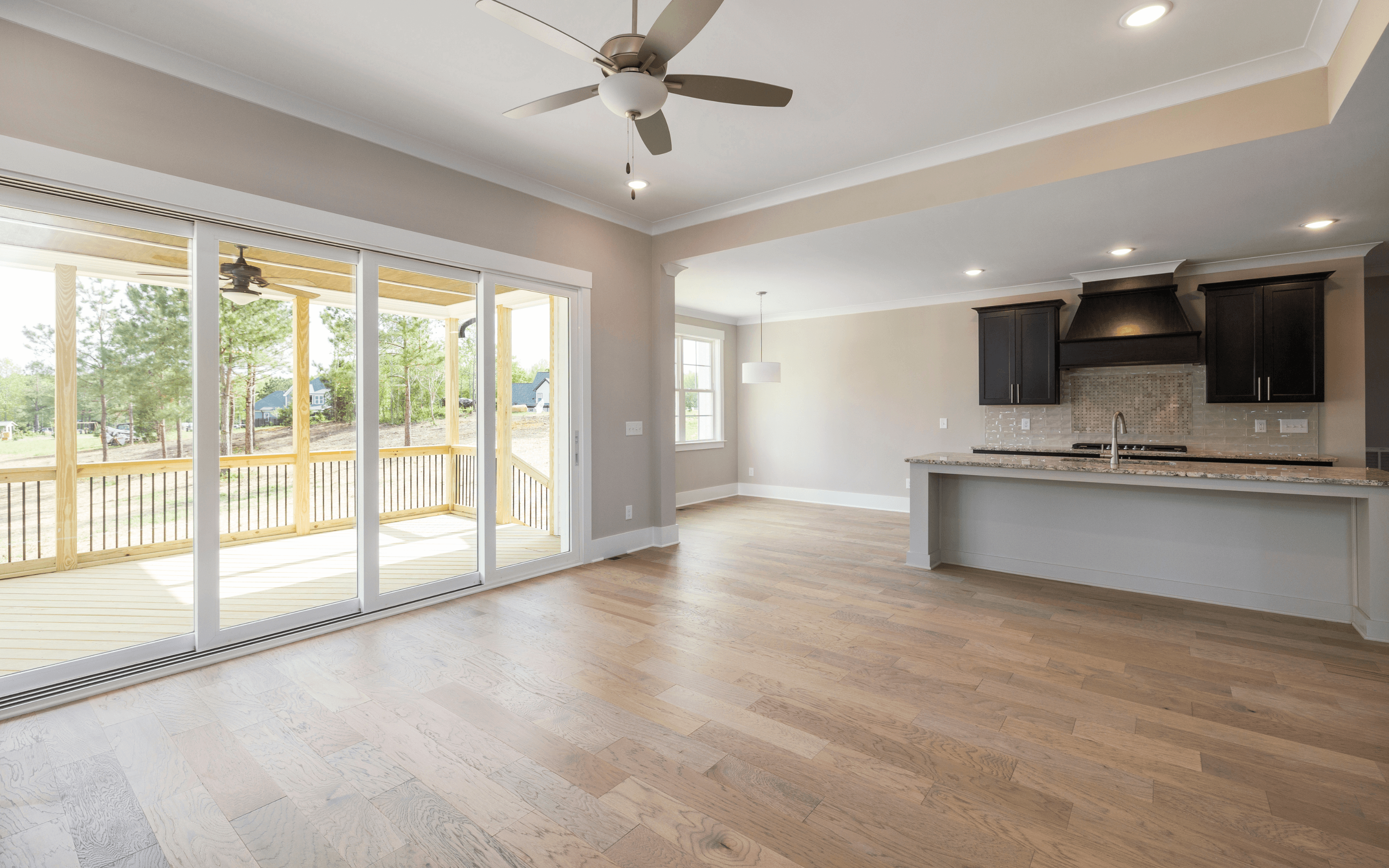

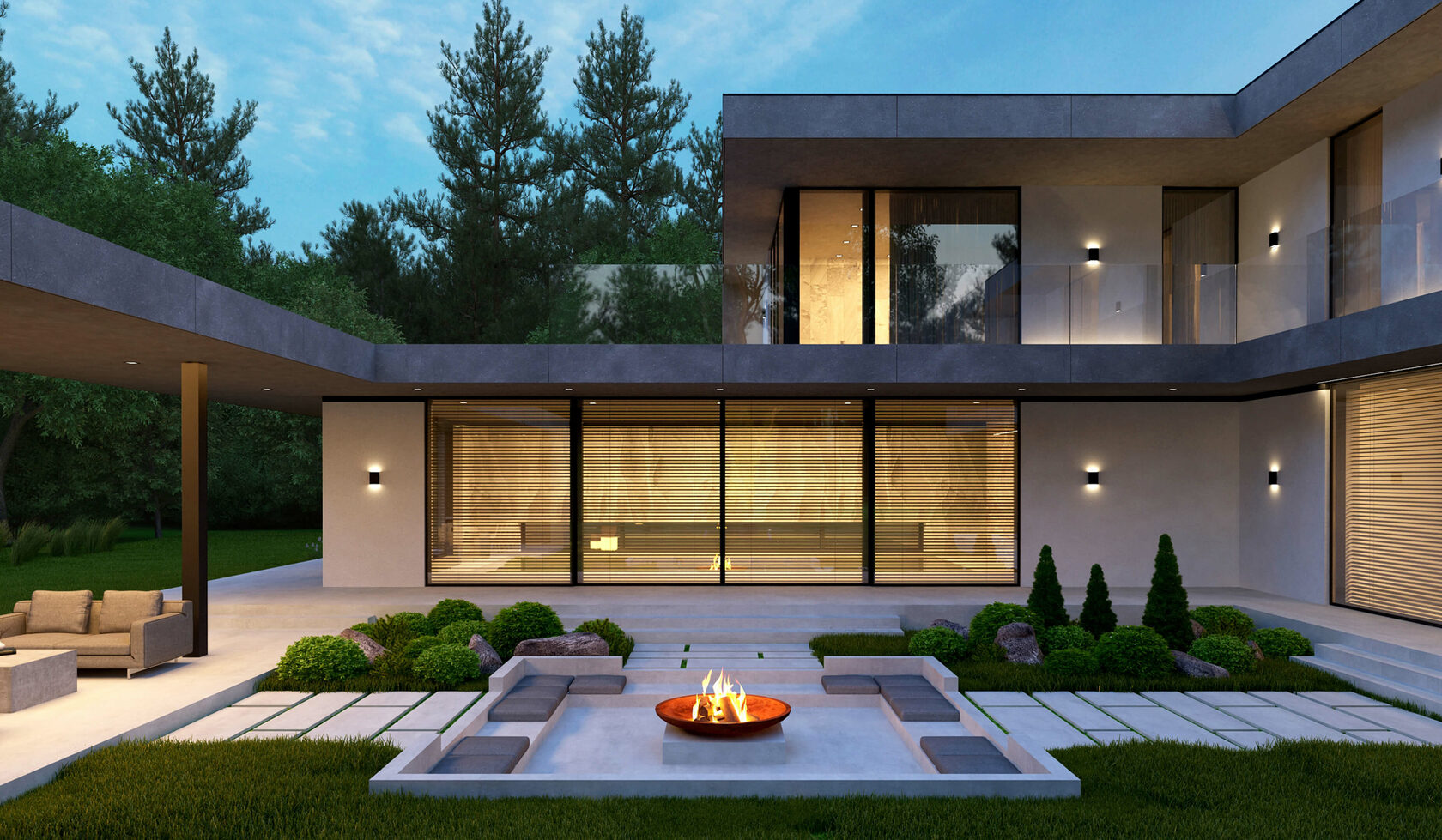

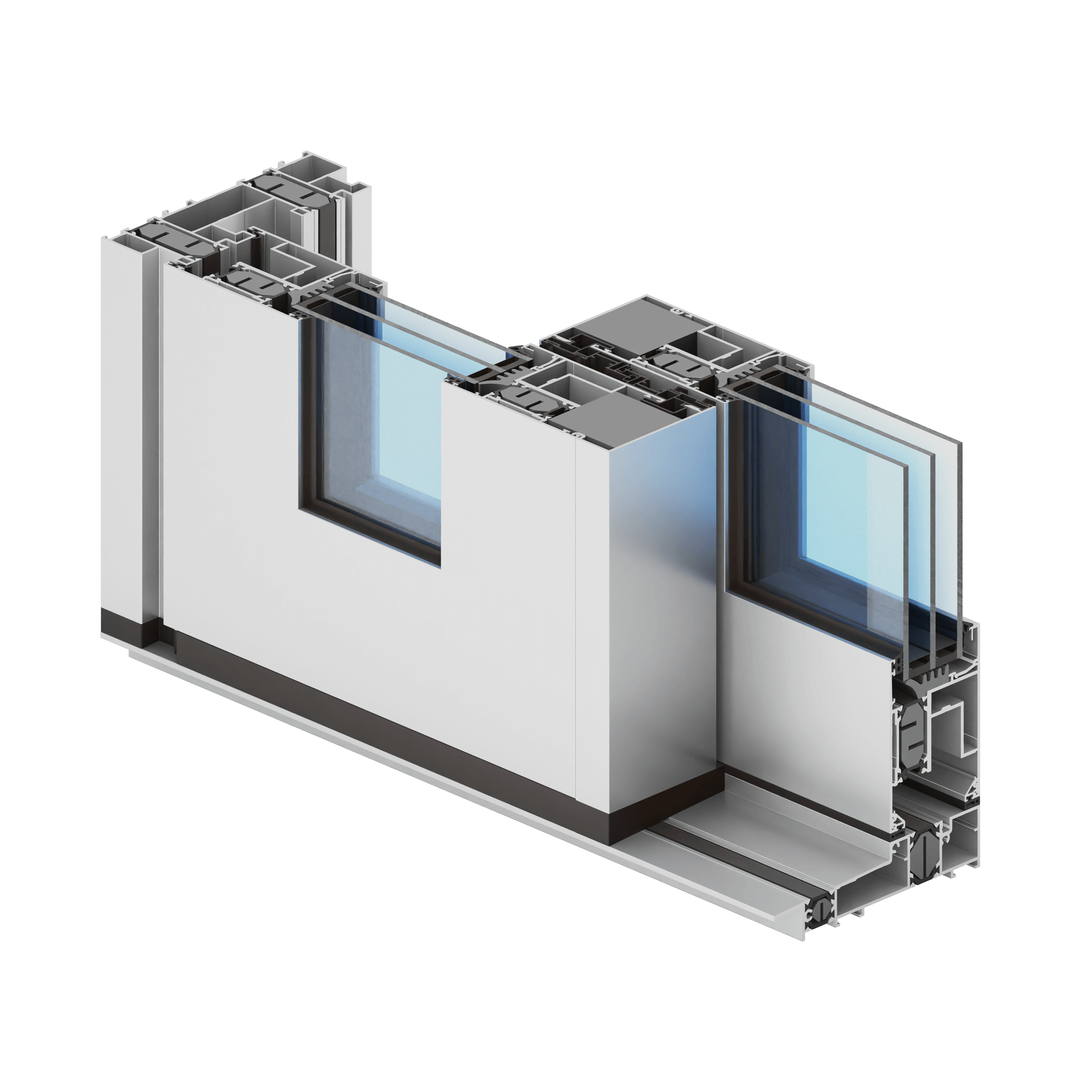

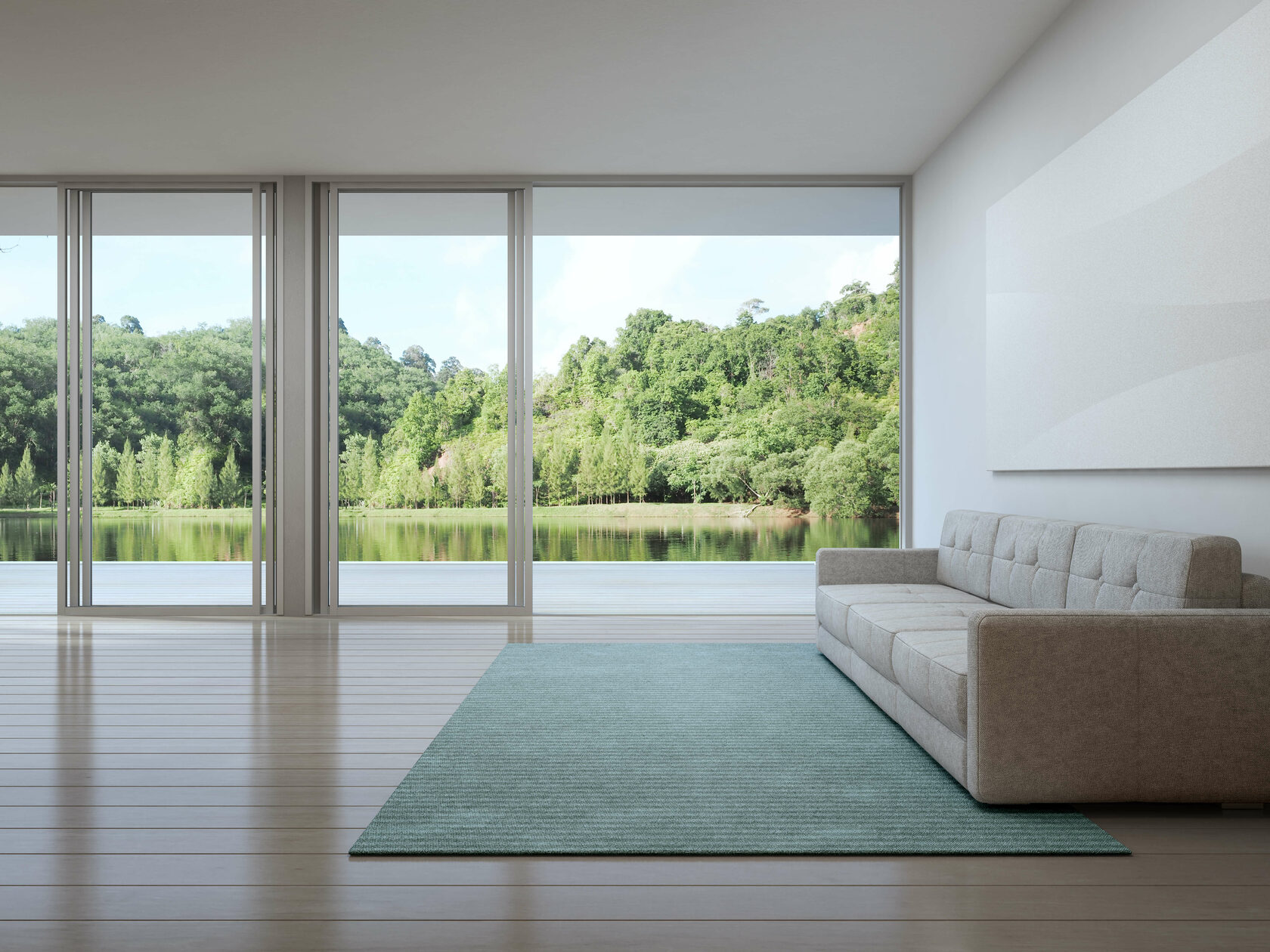

Ultraglide - option with a low threshold
the Ultraglide system is not only functional, but also offers economical and aesthetic architectural solutions; modern design and the use of lift and slide fittings of the UG system with a low threshold ensure comfortable use, increase the use value and elegant design
the model with a reduced threshold is a solution that improves the accessibility of buildings for the disabled - the low threshold option prevents faults at the door-floor junction and allows the threshold to be flush with the floor
maximum sash weight 400 kg
possible construction combinations: 2.4 elements based on a double track door frame
Ultraglide - option with a low threshold.

ADVANTAGES:

• UG sliding structures are intended for use in residential buildings, mainly individual and public buildings
• system adapted to the latest requirements in the field of thermal insulation, aesthetics and safety: available system options:
• UG low threshold version,
• UG - 90° angled solution
• the profiles are adapted to the assembly of many fittings available on the market, locked manually and by means of automation
• the possibility of using various types of filling (single, double-chamber glass)
• system adapted to the latest requirements in the field of thermal insulation: the system uses: a thermal break with a width of 22 mm and 28 mm enriched with the addition of glass fiber, thermal inserts and glass inserts improving the thermal insulation of the cross-section
• available options: UG, UGi, UG i+ version
• wide range of colors - RAL palette (Qualicoat 1518), structural colors, Aliplast Wood Color Effect (Qualideco PL-0001), anode (Qualanod 1808), bicolor

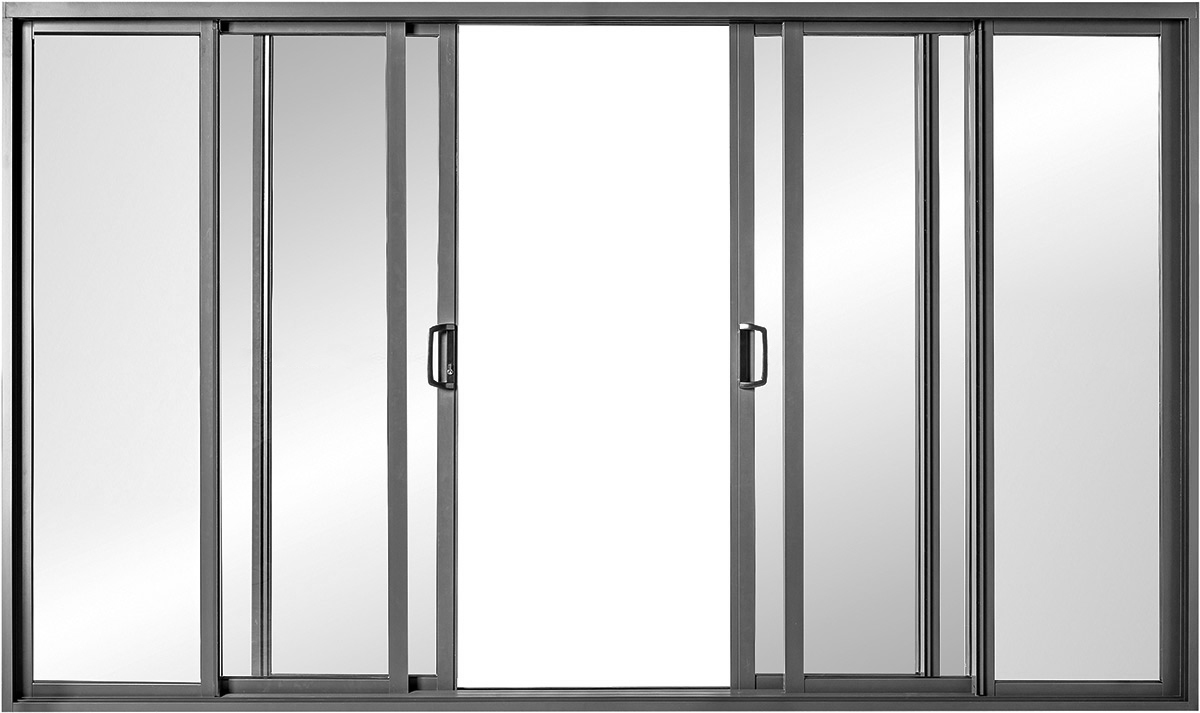

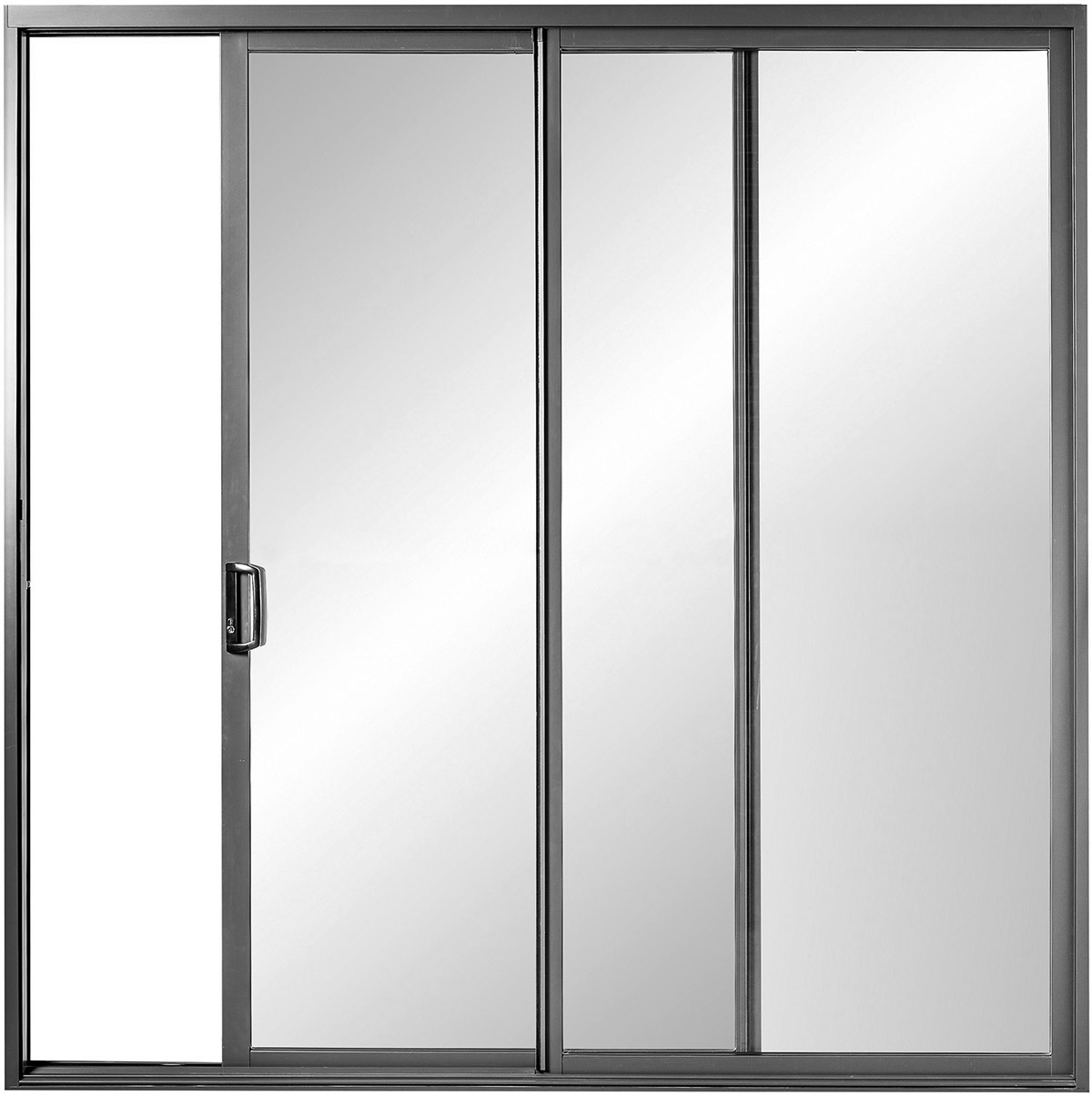

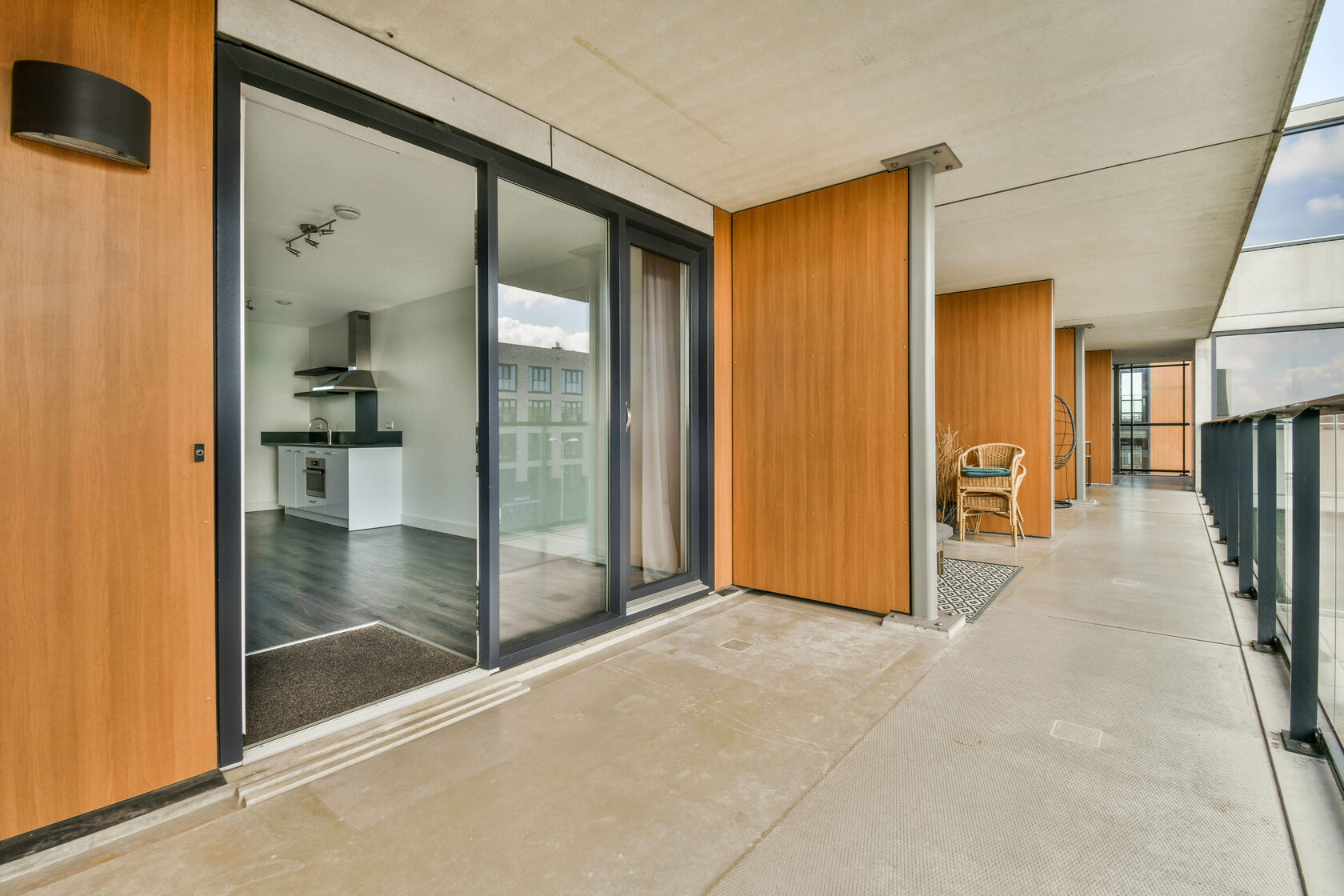

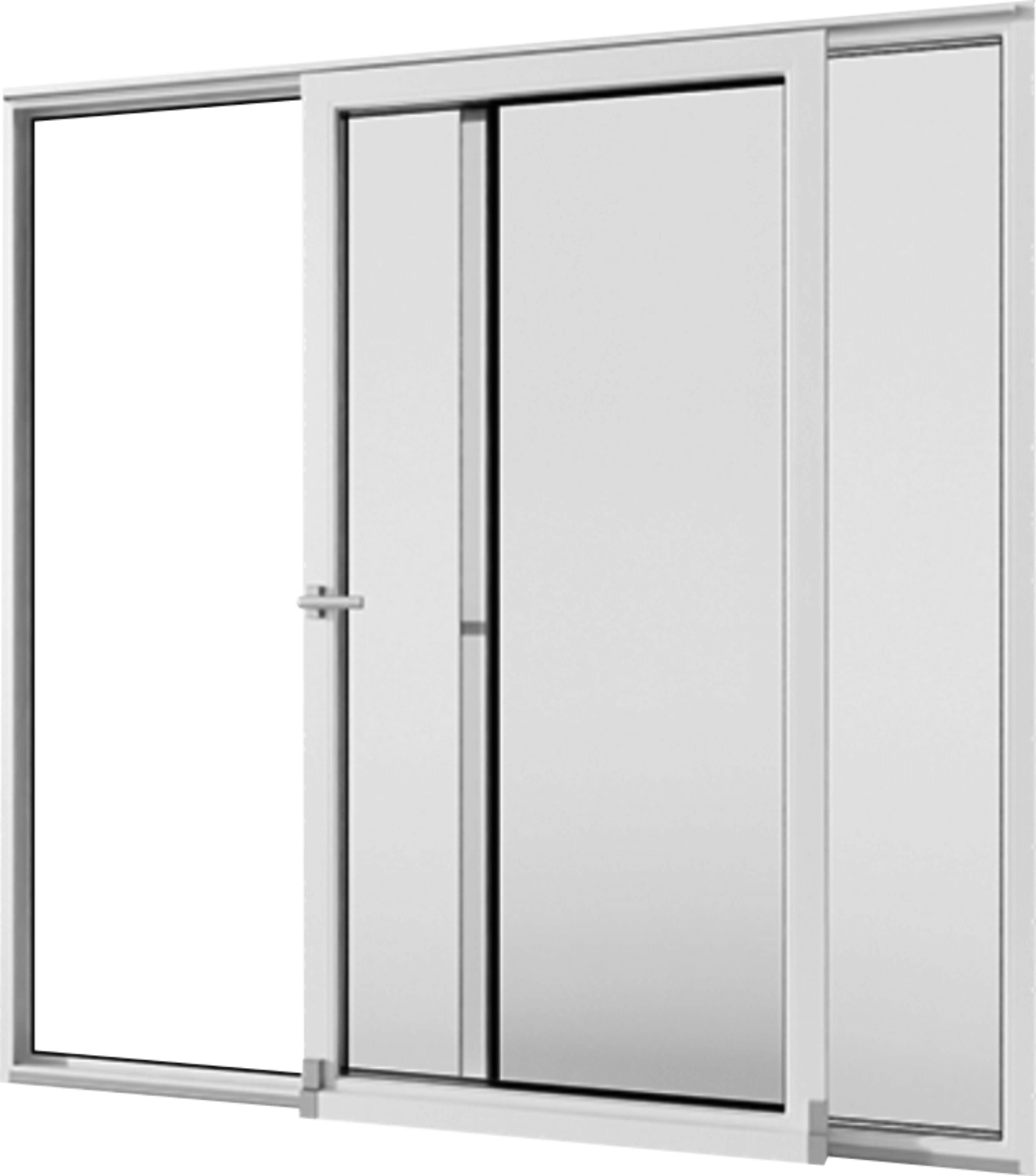

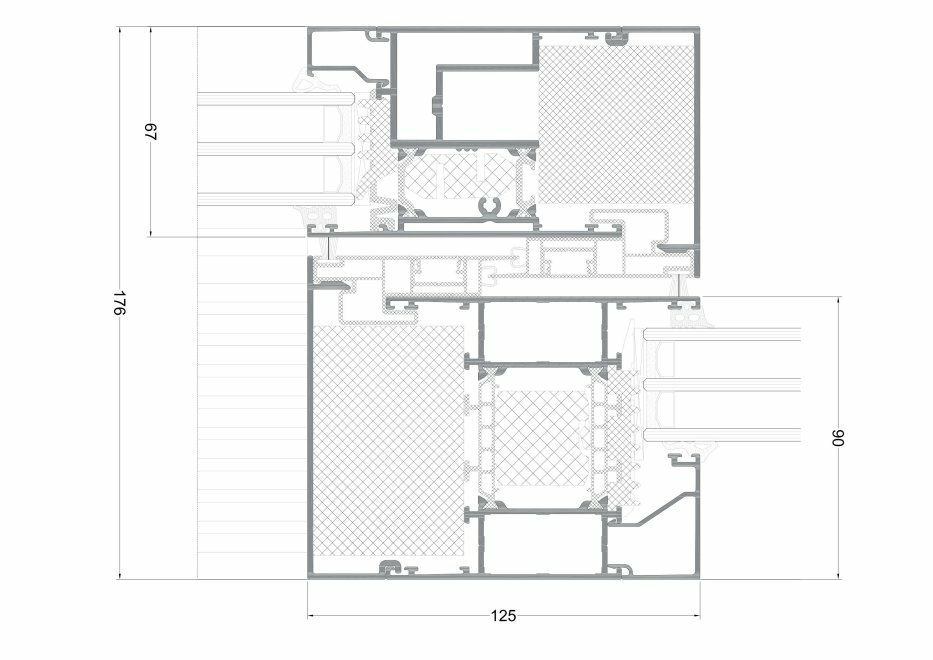

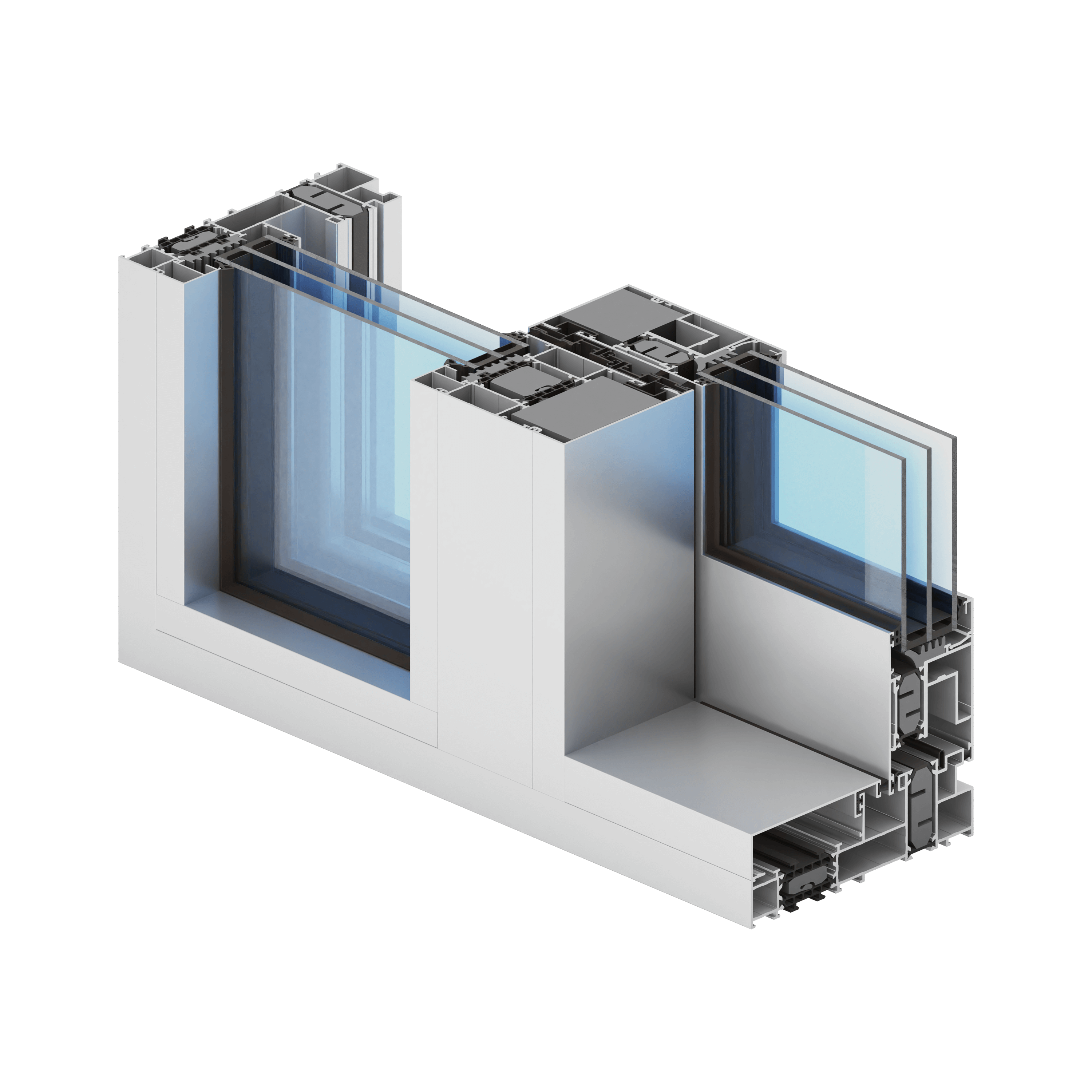

Sliding and Lift-and-Slide systems
Maximum sash weight: 400 kg
Single track door frame
Possible construction combinations: 2-element (leaf + fix), 3-element (leaf + fix + wing), 4-element (2 wings + 2 fixes)
The possibility of glazing from the outside, thanks to which it is possible to use large-size and heavy fillings.

CHARACTERISTICS:
THERMAL INSULATION Uf = from 0.93 W/m²K
FRAME DEPTH 173 mm
LEAF DEPTH 67 mm
GLAZING from 14 to 52 mm; Fix from 12 to 72 mm
LEAF WEIGHT up to 400 kg

ADVANTAGES:

• UG sliding structures are intended for use in residential buildings, mainly individual and public buildings
• system adapted to the latest requirements in the field of thermal insulation, aesthetics and safety: available system options:
• UG low threshold version,
• UG - 90° angled solution
• the profiles are adapted to the assembly of many fittings available on the market, locked manually and by means of automation
• the possibility of using various types of filling (single, double-chamber glass)
• system adapted to the latest requirements in the field of thermal insulation: the system uses: a thermal break with a width of 22 mm and 28 mm enriched with the addition of glass fiber, thermal inserts and glass inserts improving the thermal insulation of the cross-section
• available options: UG, UGi, UG i+ version
• wide range of colors - RAL palette (Qualicoat 1518), structural colors, Aliplast Wood Color Effect (Qualideco PL-0001), anode (Qualanod 1808), bicolor

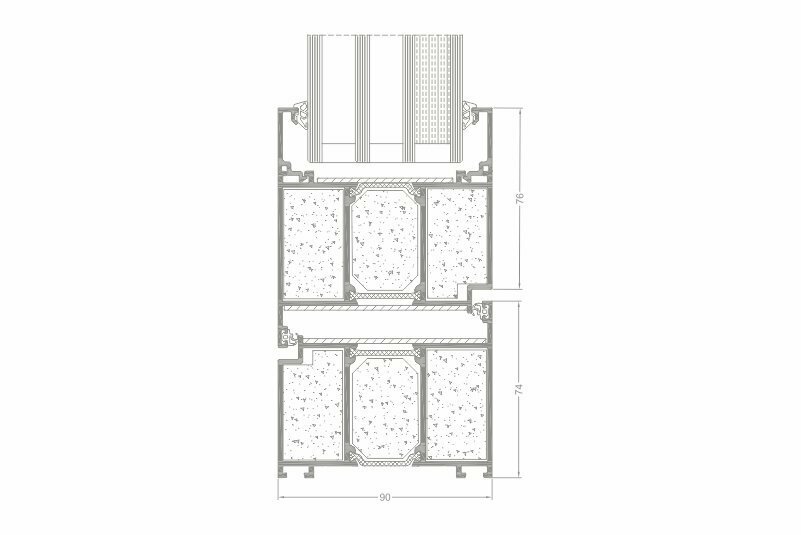

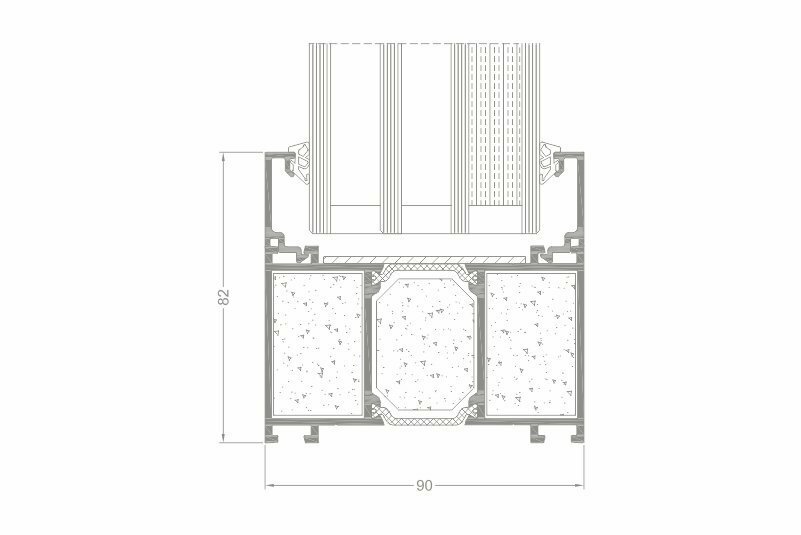

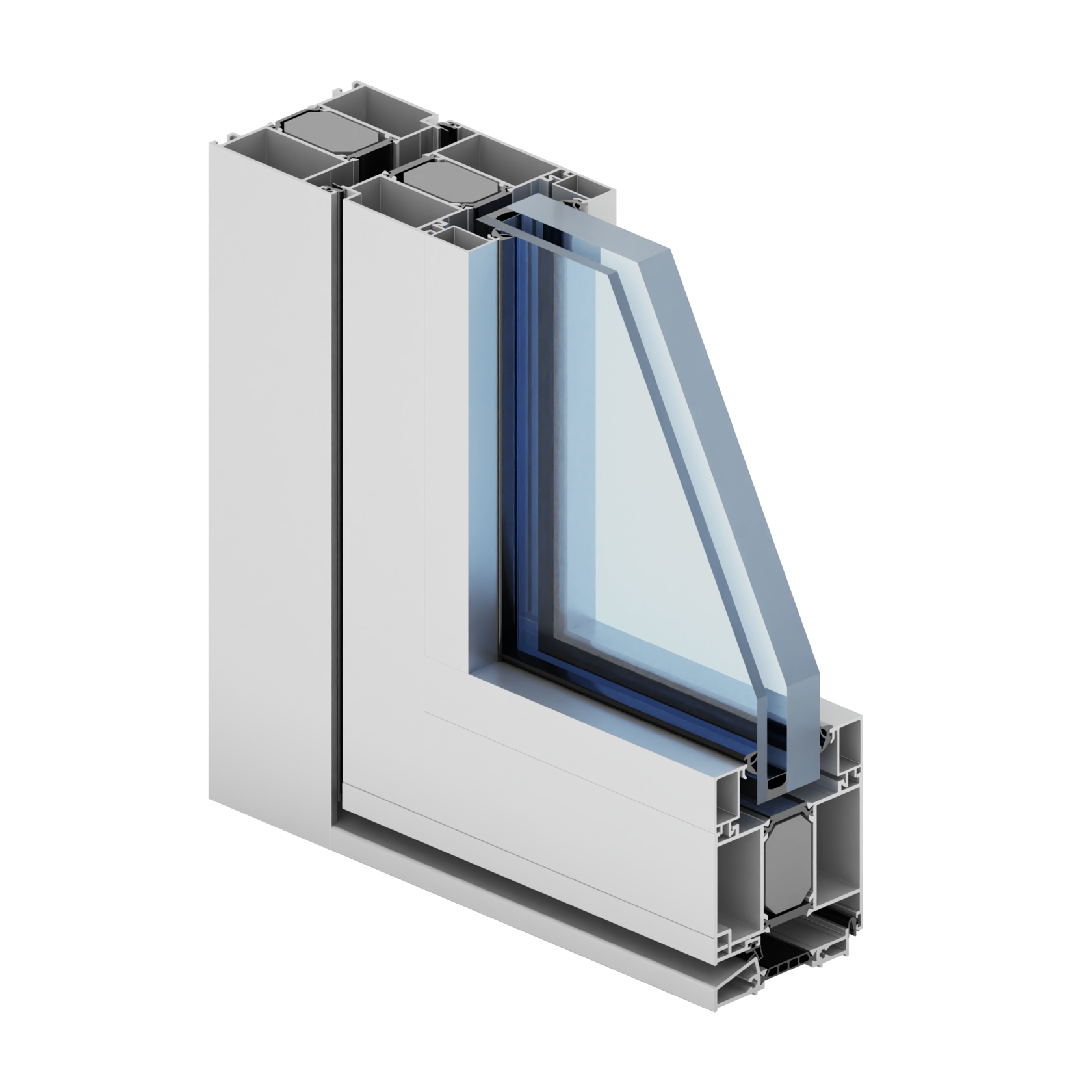

Burglary resistance: FR90 (EI60, EI30) aluminum doors obtained the RC2 burglary resistance class according to PN-EN 1627:2012; b The structure of a single-leaf door with dimensions of 1240 mm x 2250 mm was tested; the scope of the tests included: testing resistance to static loads, resistance to dynamic loads as well as resistance to manipulation with tools.

THERMAL INSULATION Uf = from 2.145 W/m²K
FRAME DEPTH 90 mm
LEAF DEPTH 90 mm
GLAZING from 20 to 60 mm

ADVANTAGES:
SYSTEM CHARACTERISTICS:

• installation depth 90 mm
• symmetrical construction of the profile, the middle chamber filled with gypsum inserts (between thermal breaks): for EI30, all chambers filled with gypsum for EI60
• system compatible with systems with a depth of 90 mm (STAR)
• the possibility of using a double-chamber glazing unit (glazing: from 20 mm to 68 mm)
• possibility of panel filling (panel 60 mm thick): panels with mineral wool filling (Up=0.57 W/m2K), panels with gypsum filling
• application: internal and external development
• structures: single- and double-leaf doors, fixed glazing
• maximum dimensions of the tested structure: 6000 x 3000 mm (fixed wall, one glass pane)
• maximum dimensions of single-leaf doors: 1650 x 2870 mm
• maximum dimensions of double-leaf doors: 3170 x 2870 mm
• single or multi-point locks, electric strikes
• overlay hinges, roller hinges
• threshold and non-threshold solutions that can be used
• kick (high pedestal)
• the possibility of using a ventilation grille
• optimization of profiles (one type of profiles for the door frame and leaf)
• quick and simple prefabrication (no processing of the glazing bead)

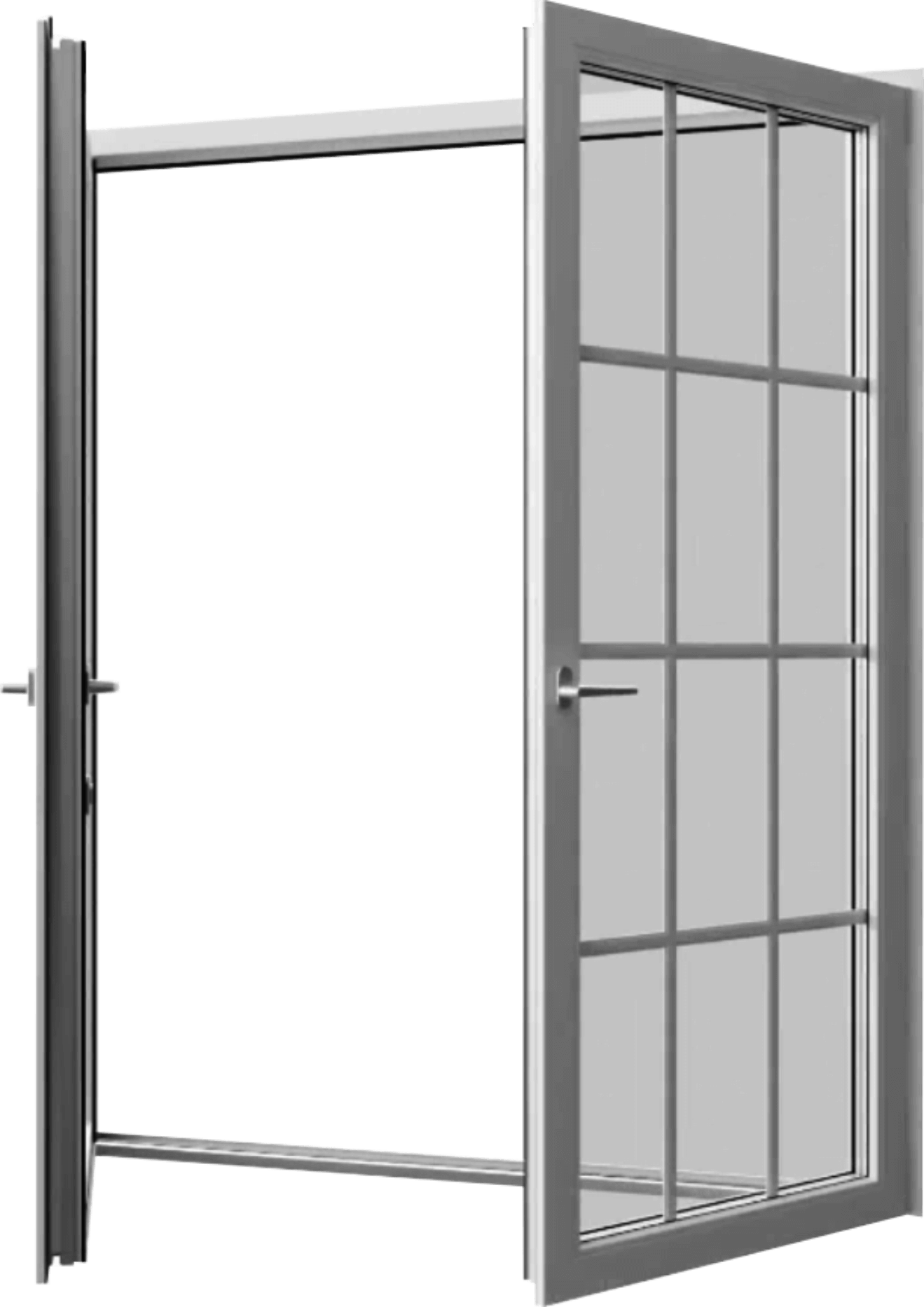

French doors are a great addition to any home. They bring a classic look to any space while looking elegant and functional. This door type is very popular in the US.

The Goldman french door offers all the benefits of a classic, modern door including noise reduction, low maintenance, safety and security, and energy efficiency, and are available as open-in and open-out styles with equal or non-equal split panes. The extensive opening allows unrestricted access to your home as well as maximum ventilation and practical entry into your garden or patio.

Unification of the inner world and landscape. A small interior (building) is transformed into an endless field for creating creative ideas, for family joys orand a warm friendly company by the fireplace with a glass of wine. You let air into the room. This is your territory without borders.

ADDITIONAL THERMAL INSULATION AND WATER RESISTANCE

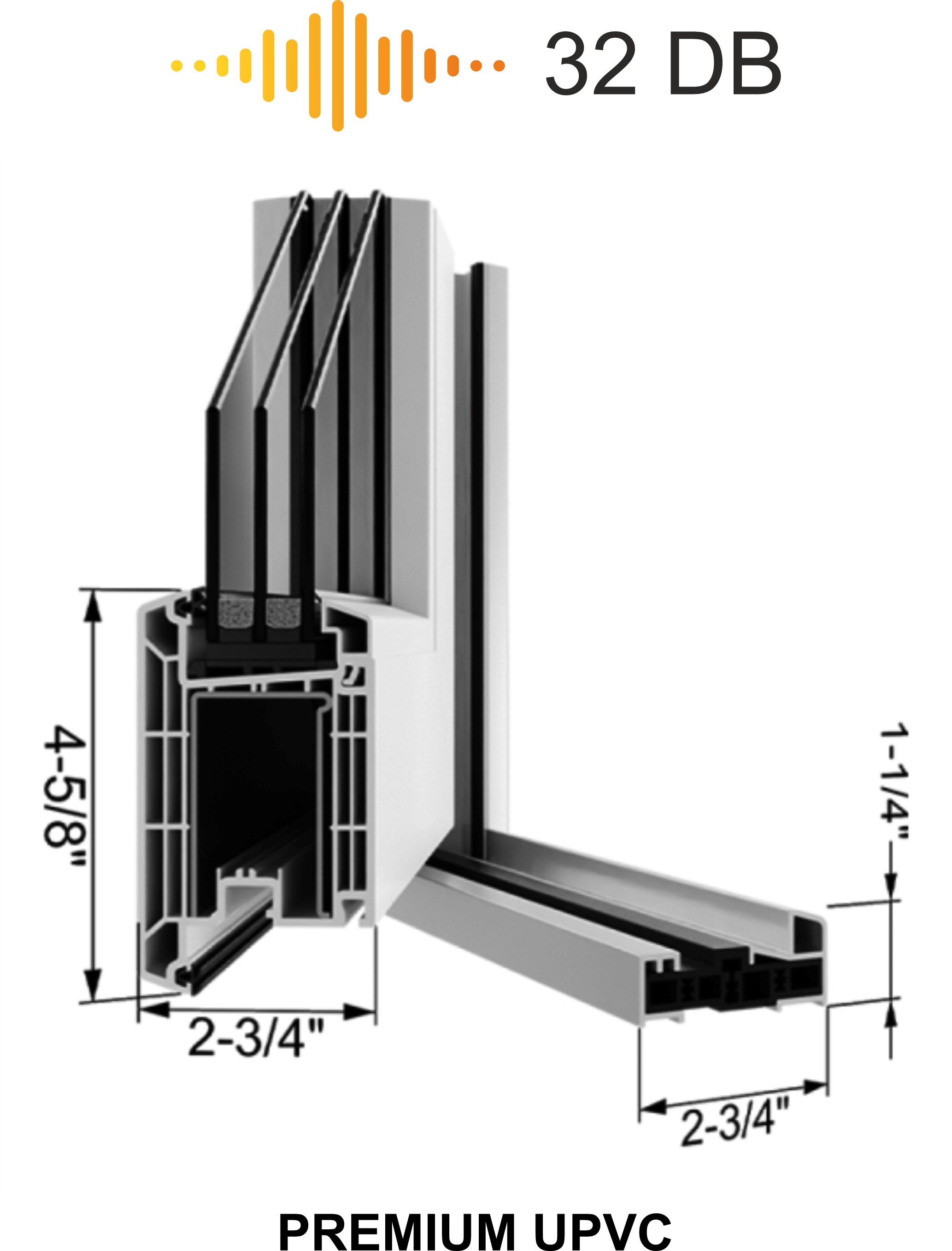

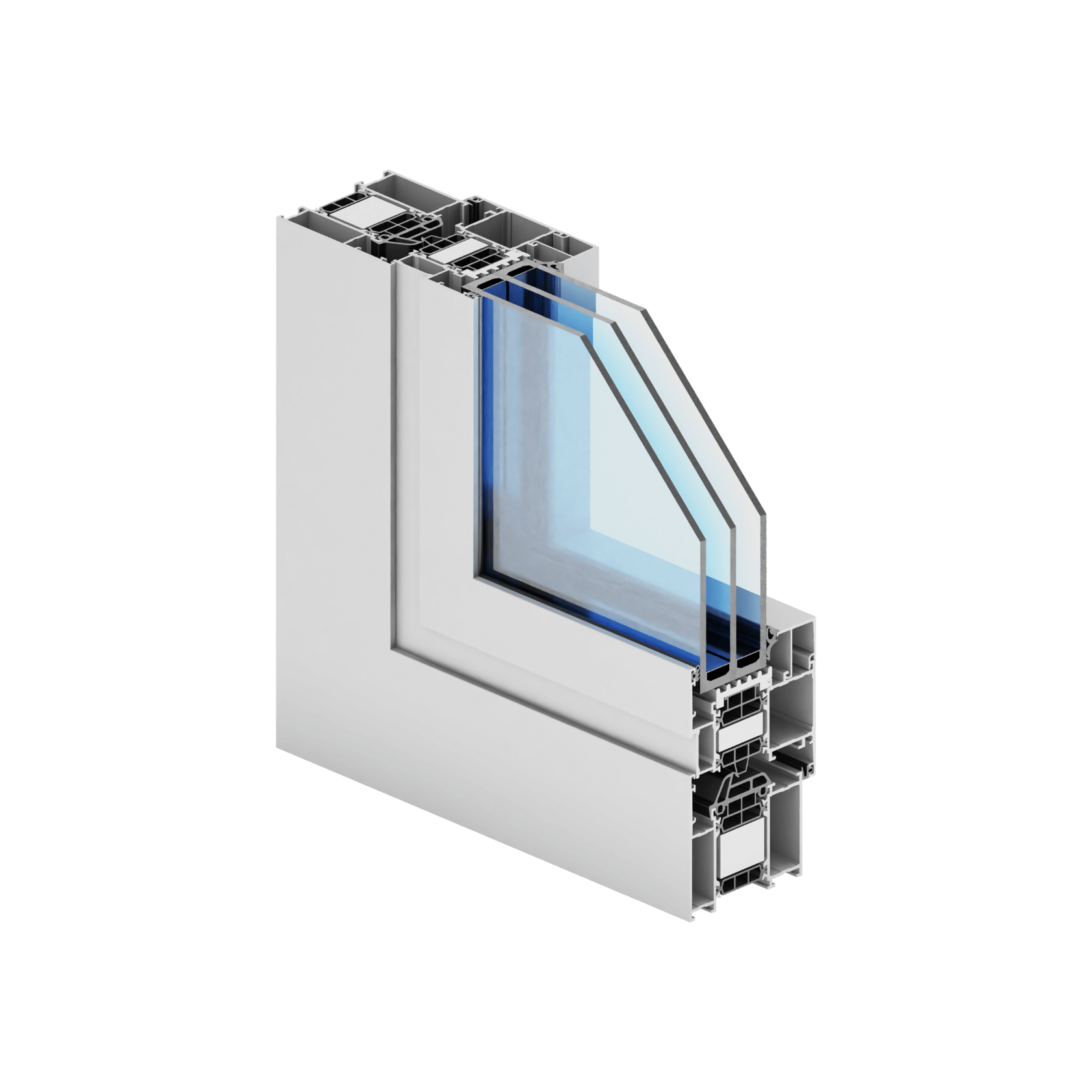

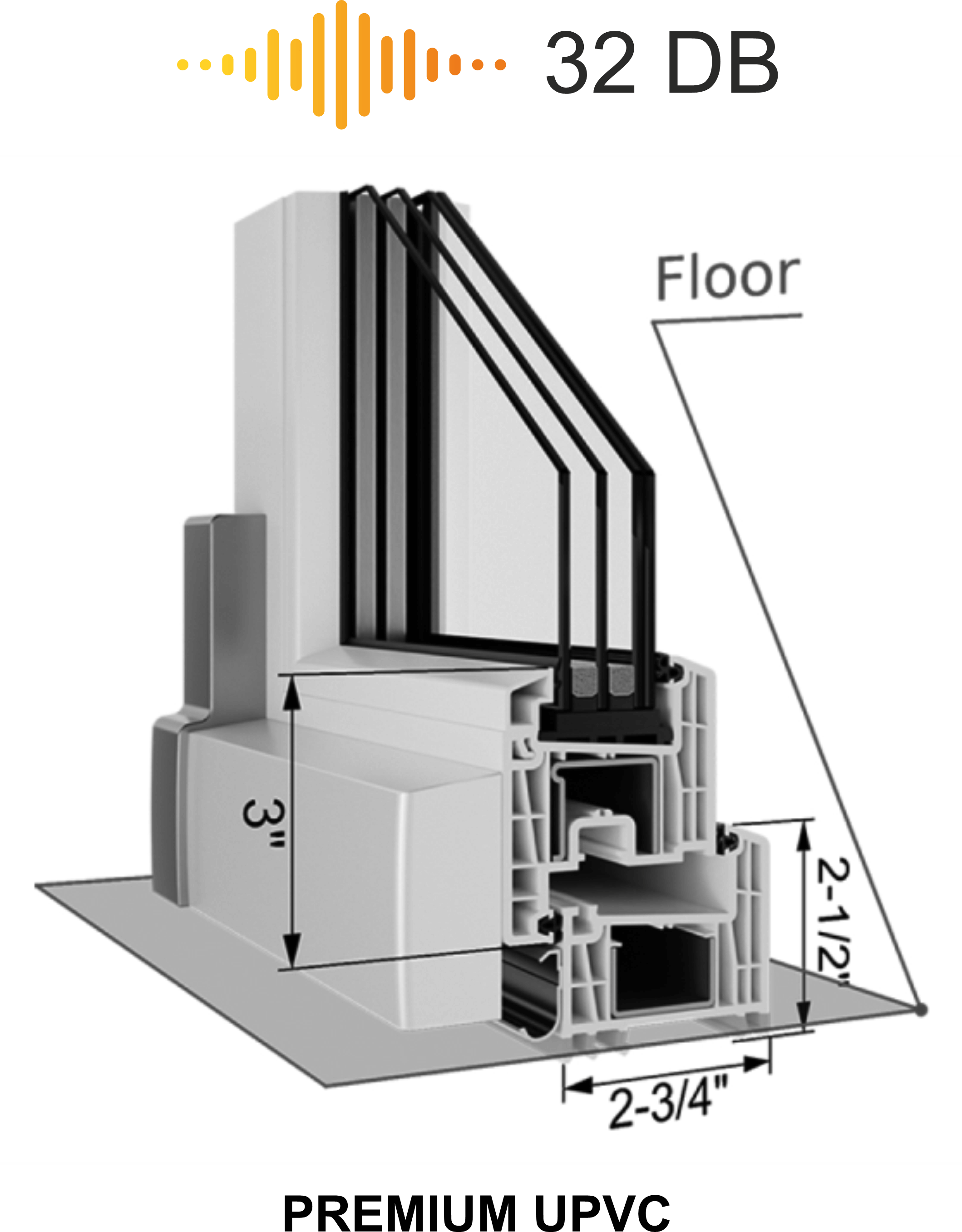

UPVC frames exclude the rapid loss of heat from the room and freezing of the sashes, which is typical for aluminum sliding systems. Due to the presence of two sealing circuits of the sash, dust, dirt, moisture and drafts do not enter the room.

Use for a window with double or triple glass panel, size of sash up to 19, 24 sq/ft.

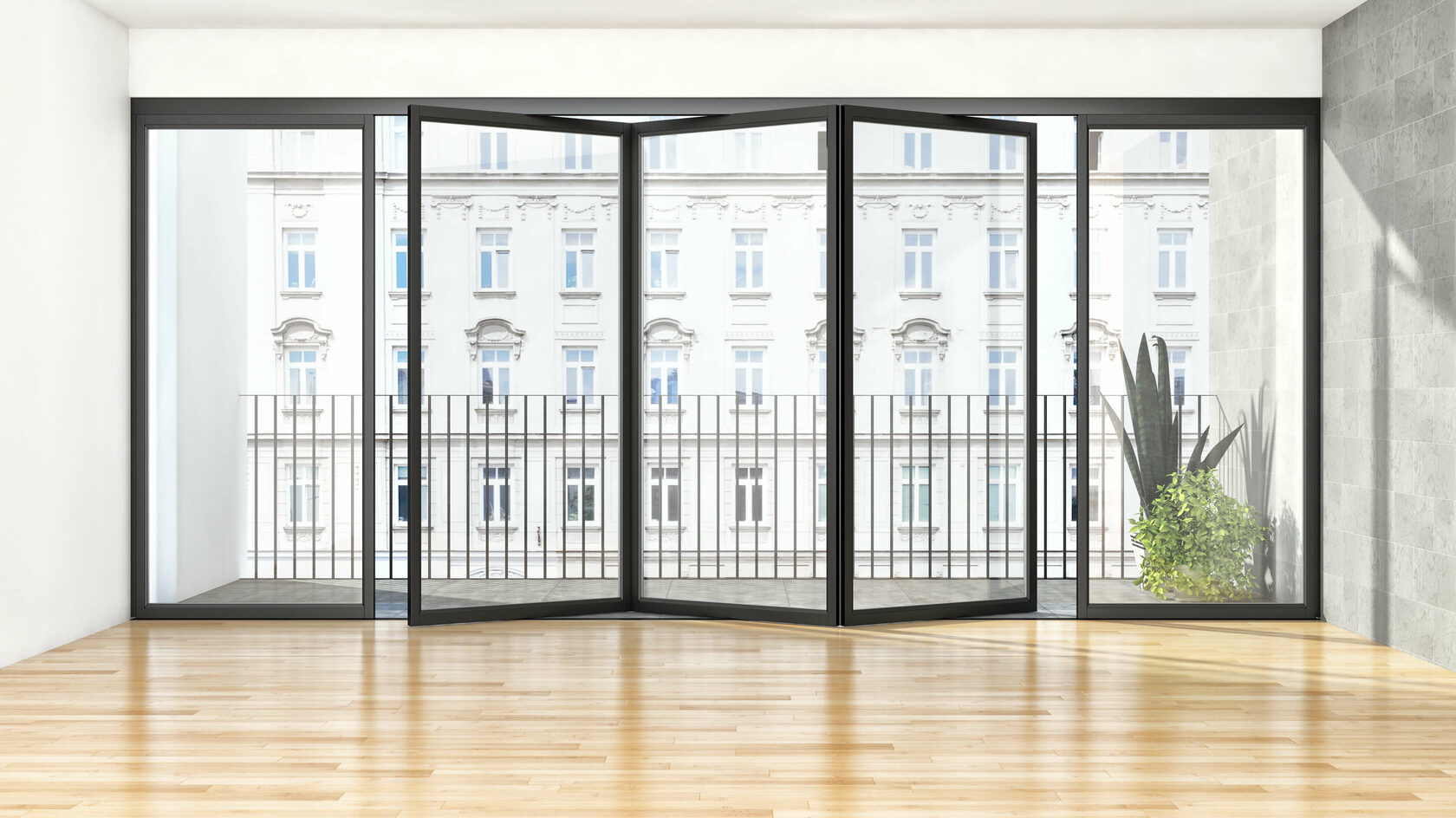

A wide range of available solutions and potential applications enables the design of structures such as: balconies, terraces or winter gardens to structures that work well in public utility buildings and commercial facilities.

THERMAL INSULATION Uf = from 1.68 W/m²K *
Uf = from 1.33 W/m²K **
FRAME DEPTH 74.5 mm
LEAF DEPTH 74.5mm
GLAZING from 16 to 50 mm

ADVANTAGES:

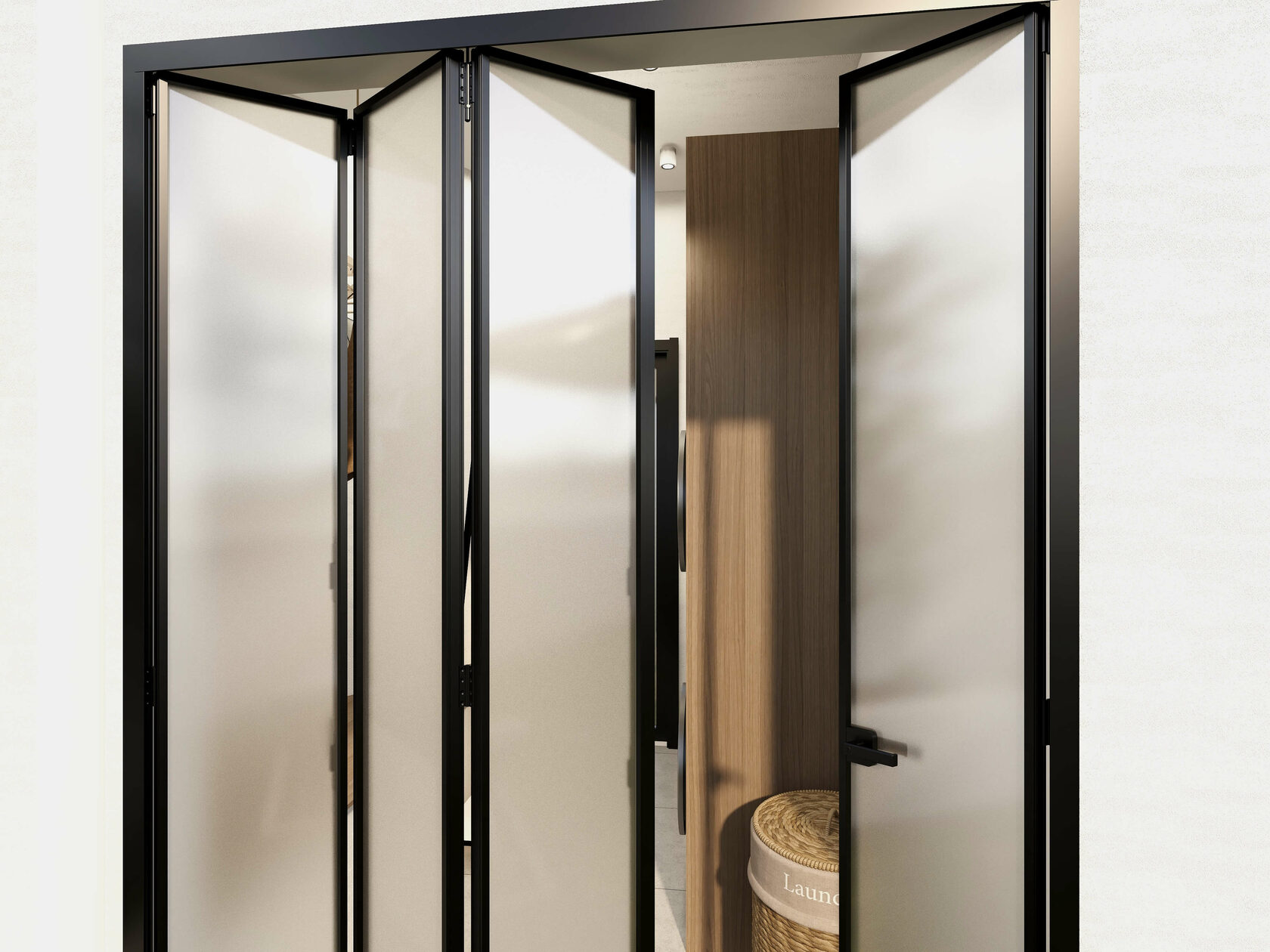

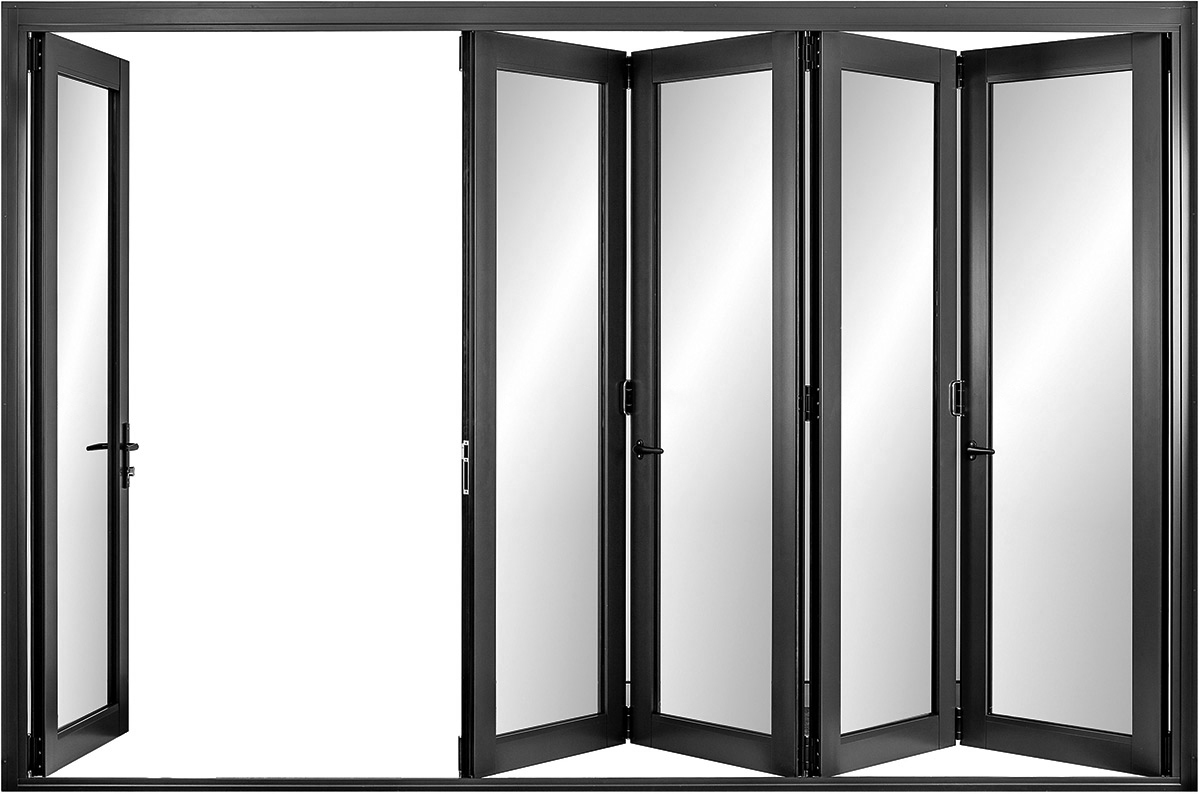

• thermally insulated three-chamber door system designed for the construction of folding doors enabling the arrangement of wide, open passages;
• the possibility of using two types of threshold system: a system with a flat threshold with a brush seal, and a tight threshold made on the basis of a comprehensive frame around the perimeter of the entire terrace window;
• depending on the requirements and application, the Panorama system offers structures that open inwards or open outwards in a very large sash configuration (2+1.3+2.3+3);
• new integrated fittings: a hinge with a lower trolley, a hinge with a handrail and low handles improve the functionality of the structure; at the same time, they reduce the dimensions of the complex construction of folding doors;
• the minimized visual width of the profile used in the system makes the construction of folding doors seem light;
• possibility of painting according to the RAL palette (Qualicoat 1518), in the structure of Aliplast Wood Color Effect (Qualideco PL-0001), anodized finish (Qualanod 1808), also bicolor
