PVC windows & doors

GOLDMANN D-71 is a manufacturer of quality profile systems for PVC windows and doors. Persistent research and careful quality control together with a whole series of certificates and awards make these PVC profiles one of the best brands.

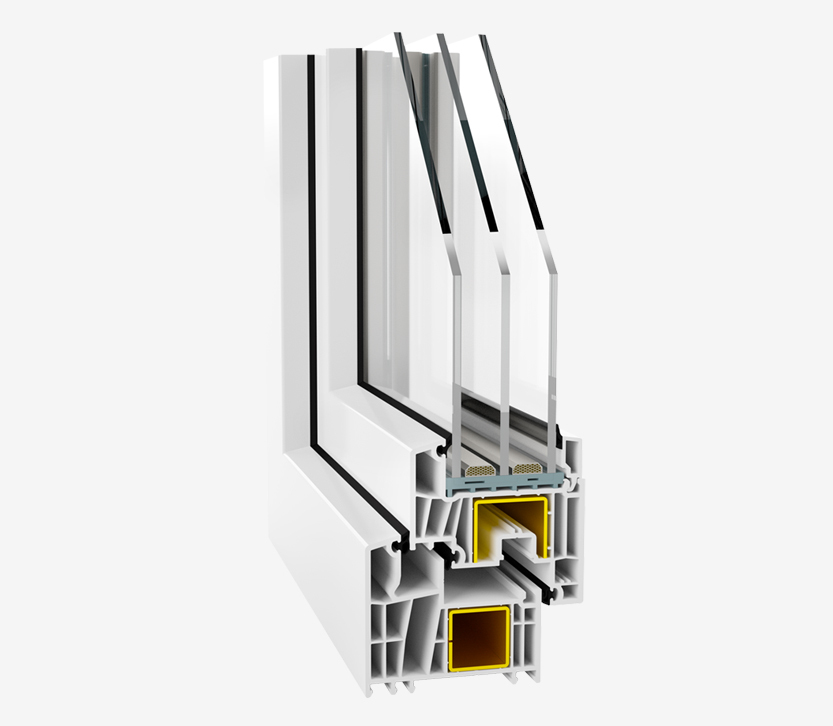

The profile in the GOLDMANN D-71 system has a 6-chamber system made of extraordinary white PVC. Functional, universal and elegant.
A whole series of additional profiles enables the execution of any properly designed structure. It has a door system, gray or black seals. A large selection of decorative foils.

*Residential only

• 6-chamber system 2 3/4 inch (70 mm) wide
• Possibility of application of frame with the installation width of 3 3/16 inch (81 mm)
• Pure white profiles A and B class profiles in accordance with PN-EN 12608:-1:2016-04 standard
• Possibility of application of many kinds of glass packages: from: 9/16 to 1 3/4 inch (from 14 mm to 44 mm) Uw = 0.15 Btu/h·ft2·F
• Perfect thermal insulation for this class of profiles – Uf. 0.21 Btu/h·ft2·F
• Full range of additional profiles allowing to execute any correctly designed structure
• Contains door system
• Profile core matched to the color of decorative foils
• Three colors of core offered: white, caramel and dark brown
• Grey or black gaskets
• Wide range of decorative foils

We are very proud to have earned the respect of investors in a variety of sectors: residential, commercial, historical restoration, and even the most demanding field of passive and energy efficient architecture.

The highest quality of our products is achieved by the use of the most up-to-date technologies and continuous investments in R&D. Being one of the few manufacturers in USA to have successfully introduced modern solutions into the market making us a pioneer of innovation and development within this sector.

Number of chambers - 6
Mounting Depth - 3 3 /16 in
Reinforcing amplifier - Square frame, U-shaped sash
Thickness dbl-glazed windows - 48 mm (1.88 inch), 0.94 inch / 1.25 inch / 1.57 inch
Sealant - co-extruded
Seal color - Seal color
Arched and non-standard shape - Yes

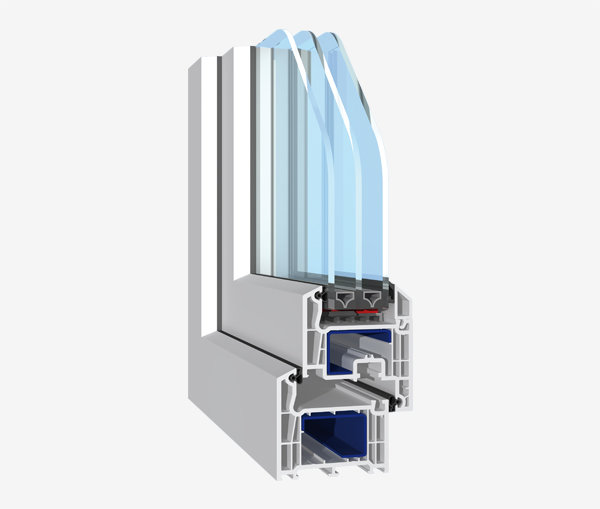

The GOLDMANN SL- 73 window system will satisfy all your design needs with style and sophistication: The high-density surfaces not only make the profile particularly easy to clean, but also guarantee an extremely long service life.
The profile system prevents thermal bridges and significantly reduces energy costs. The intelligent structural design of the profile with large steel reinforcements ensures excellent stability and reliable functionality of uPVC windows.

• Salamander system with 5 chambers, 2 7/8 inch / 73 mm thick
• High security through window fittings, available standard or with safety fittings
• Possible strong thermal insulation up to Uv = 0.19 Btu/h·ft2·F
• High sound insulation of 30 - 34 dB with especially sound insulated glass
• Triple glazing with a depth of 2 7/8 inch / 73 mm
• Window and door profiles in white
• High-quality galvanized steel reinforcements in the frame and wings in all sizes

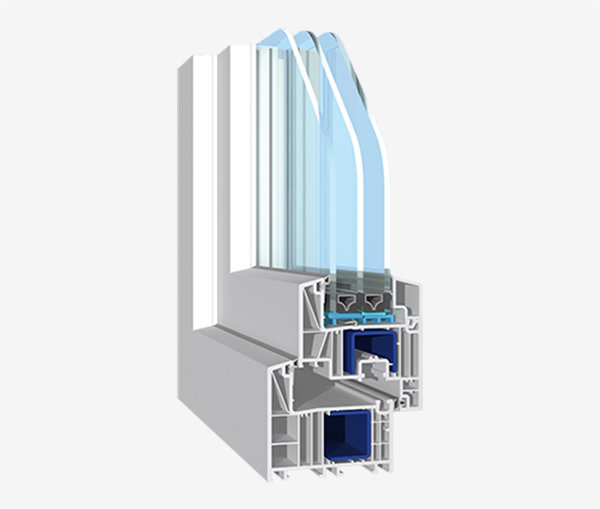

The GOLDMANN SL- 82 window system will satisfy all your design needs with style and sophistication: The high-density surfaces not only make the profile particularly easy to clean, but also guarantee an extremely long service life.
The profile system prevents thermal bridges and significantly reduces energy costs. The intelligent structural design of the profile with large steel reinforcements ensures excellent stability and reliable functionality of uPVC windows.

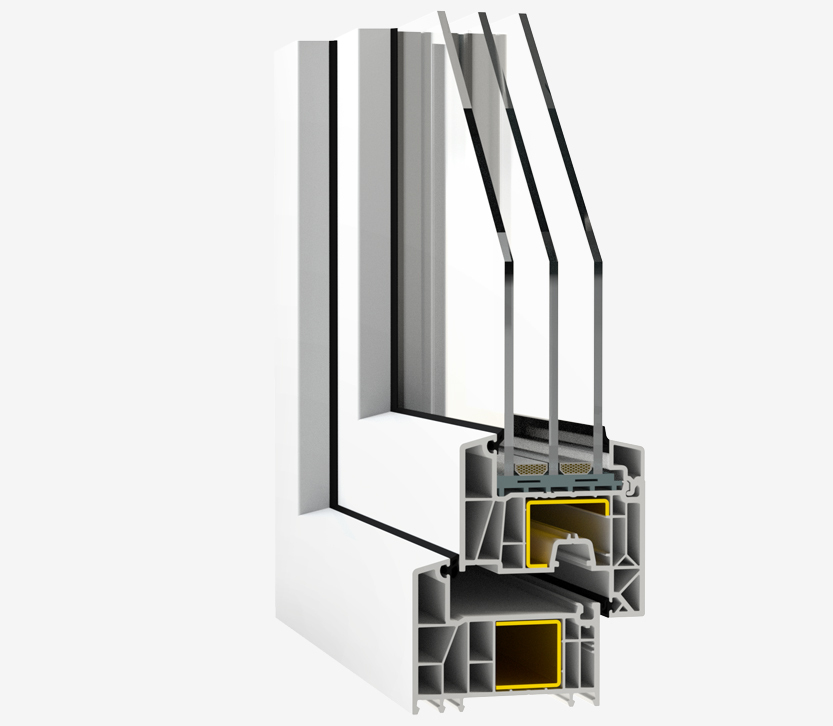

• 82 mm thick Goldmann 6-chamber system with 3 circumferential sealing levels
• Available as standard or with security fittings
• Strong thermal insulation up to Uv = 0.14 Btu/h·ft2·F possible
• High soundproofing of 32 - 36 dB possible with special soundproof glazing
• With a construction depth of 3 1/4 inch / 82 mm, the use of triple glazing up to Ug 0.6 is possible
• Window and front door profiles in white, anthracite, golden oak and walnut
• High quality galvanized steel reinforcements in frame and sash for all sizes
• Available as turn-tilt, turn or tilt windows, fixed glazing, lift and slide doors

Number of chambers - 6
Mounting Depth - 3 1/4 inch / 82 mm
Reinforcing amplifier - U-shaped frame, U-shaped sash
Thickness dbl-glazed windows - 24 mm / 32 mm / 40 mm; 0.94 inch / 1.25 inch / 1.57 inch
Sealant - co-extruded
Seal color - Grey
Arched and non-standard shape - yes

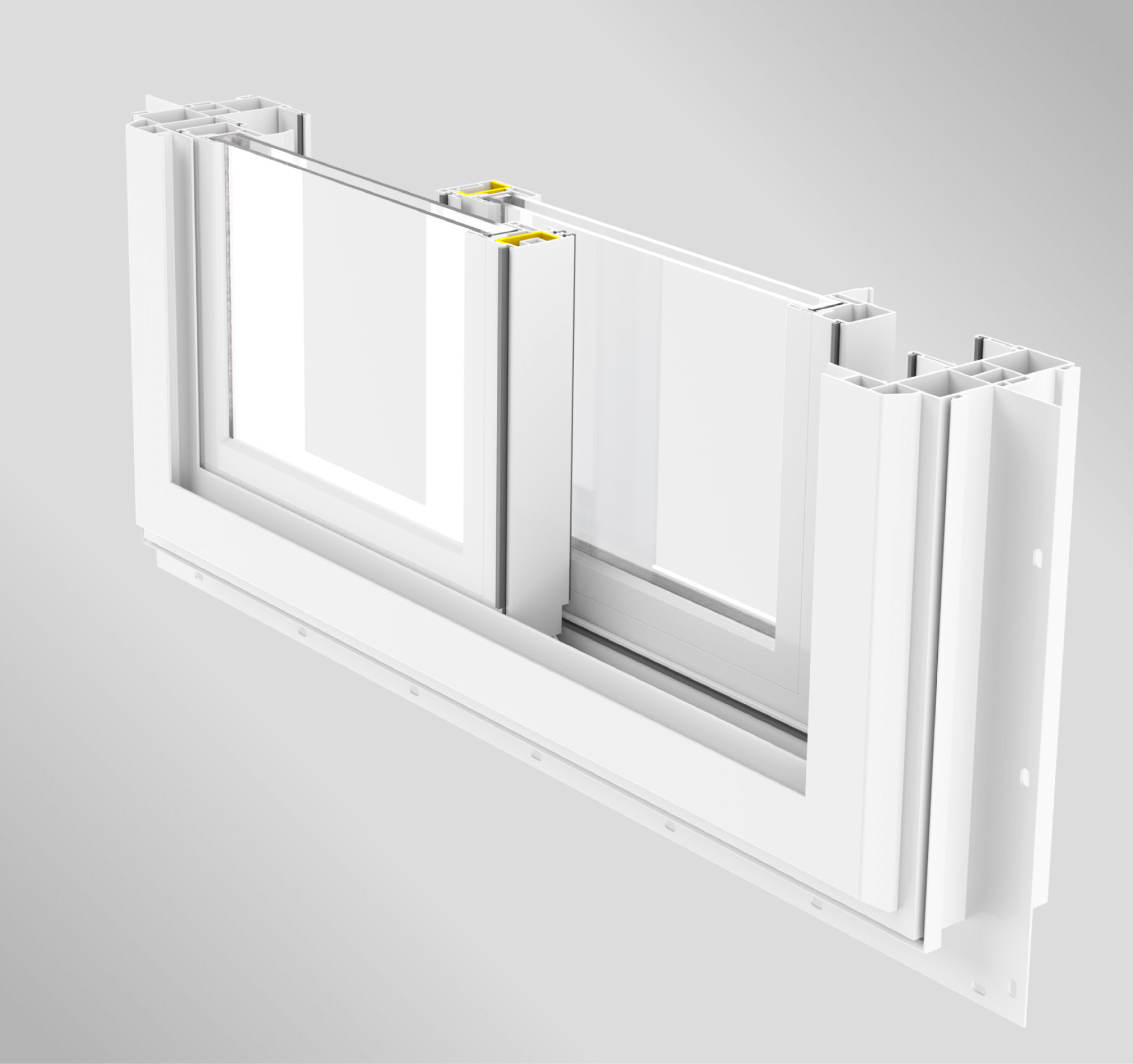

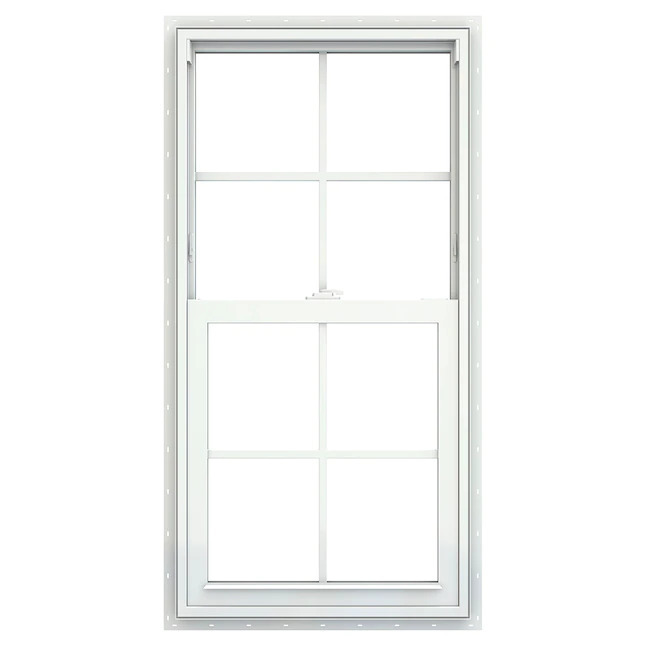

The Single-Hung window sash can be lifted only from the bottom. The main difference compared to the Double-Hung window is that the Single-Hung has a fixed glazing in the upper part. As a consequence of it, they are very energy efficient and easy to operate.

• Integral nailing fin for new construction applications.
• Upper part is made as a fixed glazing.
• Available without integral nailing fin for replacement window applications.
• Triple weatherseal at interlock.
• Integral accessory grooves.
• 3 ¼” depth of frame.
• ¾” glazing thickness range.
• Exterior glazed sash.
• Handle integrated with a sash.
• Specially designed chamber for mosquito net.
• Sloped sill for better drainage of water.
• Firm sill leg and screen chamber that prevent warping and rippling.

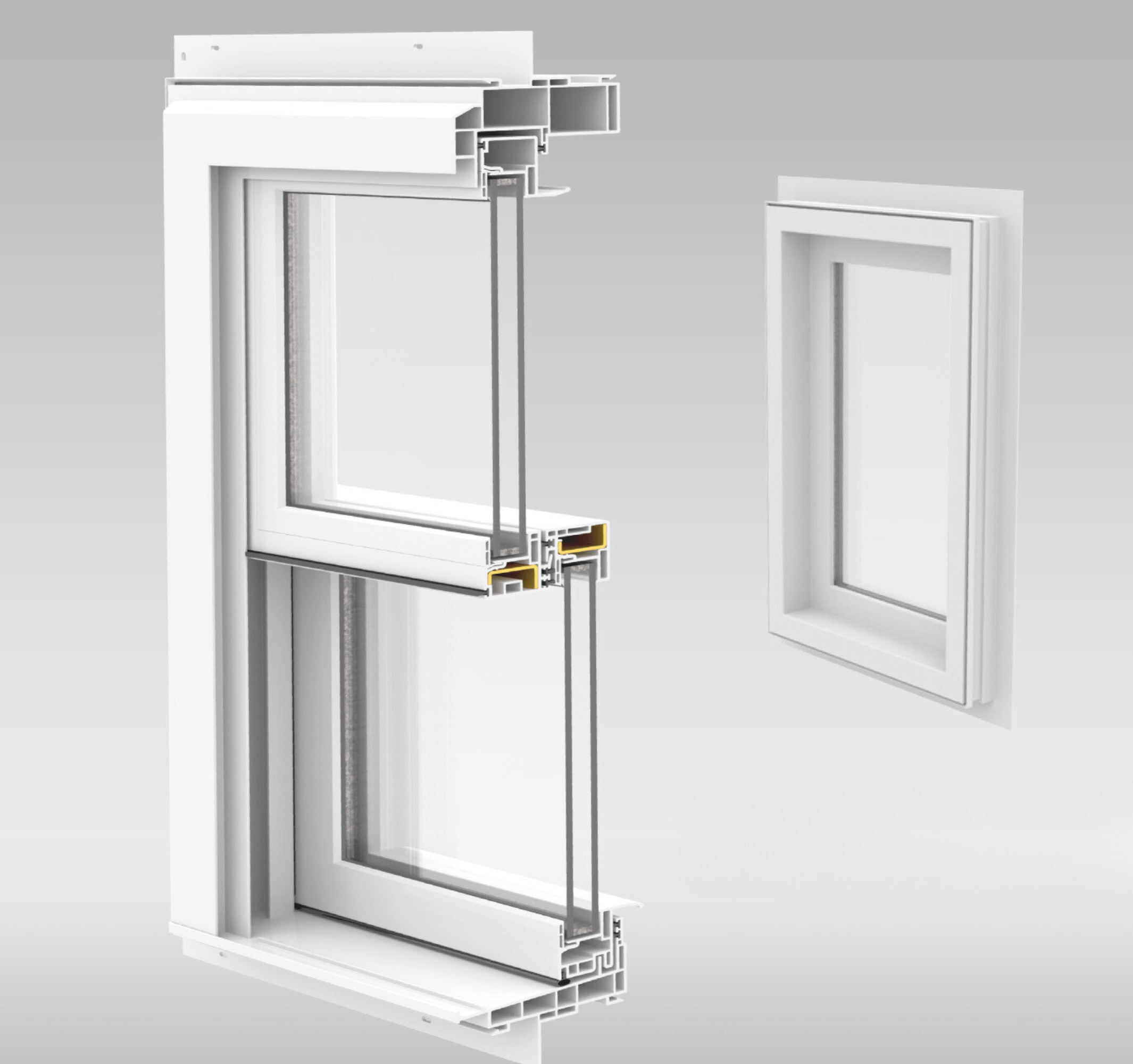

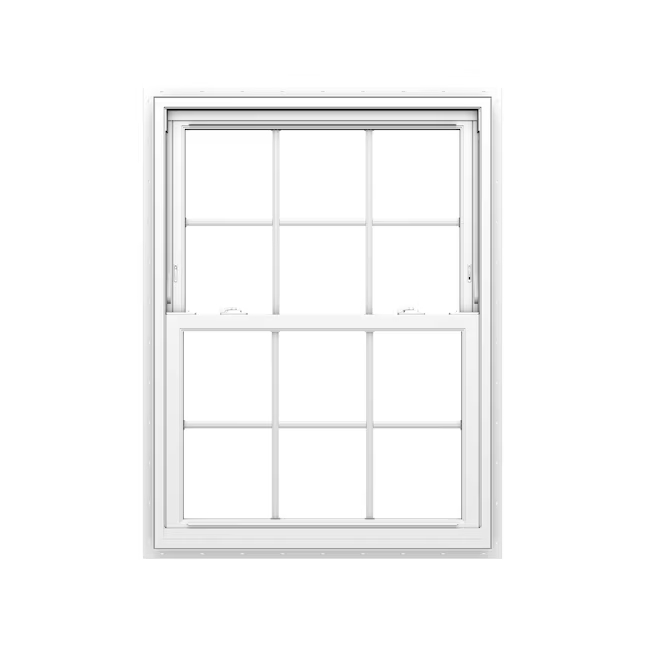

The Double-Hung window can be lifted from the bottom or lowered from the top with two independent sashes. They are easy to clean as both of the sashes tilt inward for simple access to the exterior and interior panes of glazing. Double-Hung windows do not require any extra space to operate, so they can maximize both interior and exterior space.

• Available without integral nailing fin for replacement window applications.
• Integral accessory grooves.
• Integral nailing fin for new construction applications.
• Specially designed chamber for mosquito net.
• ¾” glazing thickness range.
• Exterior glazed sash.
• Triple weatherseal at interlock.
• Double weatherseal on the sides and upper parts of the window frame.
• Handle integrated with a sash.
• Sloped sill for better drainage of water.
• Firm sill leg and screen chamber that prevent warping and rippling.
• 3 ¼” depth of frame.

Number of cameras - 6
Mounting Depth - 2.7 inch (70 mm)
Reinforcing amplifier - U-shaped frame, U-shaped sash
Thickness dbl-glazed windows - 24 mm / 32 mm / 40 mm; 0.94 inch / 1.25 inch / 1.57 inch
Sealant - co-extruded
Seal color - Grey
Arched and non-standard shape - Yes

Casement windows are hinged on one side and open outward to the right or left. It effortlessly opens and closes with a special crank that can be folded away when not in use. It is commonly used above kitchen sinks or a bathtub. Casement windows can offer you excellent energy efficiency compared to other American window profile systems. When screens are included, they are placed on the interior side of a window.

• Integral nailing fin for new construction applications.
• Available without integral nailing fin for replacement window applications.
• 3 ¼” depth of frame.
• Opens and closes with a special crank and a single handle.
• Available to make an Awning type of a window.
• Exterior glazed sash.
• ¾” glazing thickness range.
• Integral accessory grooves.
• Excellent triple sealing.

Number of cameras - 6
Mounting Depth - 3.34 inch (85 mm)
Reinforcing amplifier - Square frame, U-shaped sash
Thickness dbl-glazed windows - 48 mm (1.88 inch); 0.94 inch / 1.25 inch / 1.57 inch
Sealant - co-extrude
Seal color - White papyrus
Arched and non-standard shape - Yes

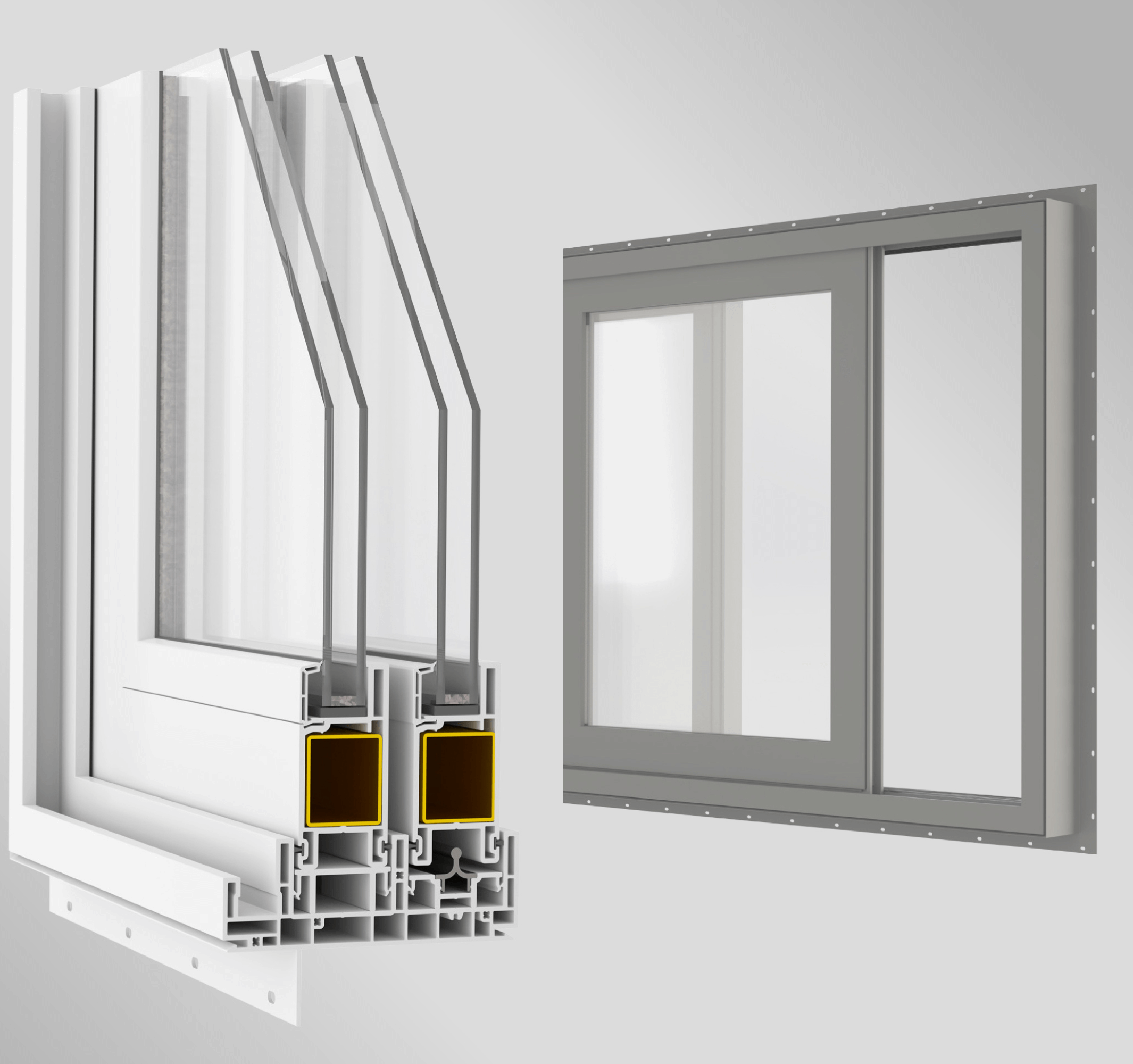

Patio Door system
Include a strong and long lasting patio door in your home with increased security features. Patio doors slide open horizontally, so they require less space to operate. Through large panels of glass we can create bright and airy spaces with a large amount of natural light. Compared to other American window systems, it is highlighted by a higher safety standard. It can be used in both traditional and modern architecture.

• 5 ⅕” depth of frame.
• Exterior glazed sash.
• Integral nailing fin for new construction applications.
• Specially designed chamber for a sliding mosquito net.
• Rigid steel reinforcement of sashes, 1/16 (1,5 mm) thick.
• Available without integral nailing fin for replacement window applications.
• Triple weatherseal at interlock

The Double-Hung window can be lifted from the bottom or lowered from the top with two independent sashes. They are easy to clean as both of the sashes tilt inward for simple access to the exterior and interior panes of glazing. Double-Hung windows do not require any extra space to operate, so they can maximize both interior and exterior space.

• Available without integral nailing fin for replacement window applications.
• Integral accessory grooves.
• Integral nailing fin for new construction applications.
• Specially designed chamber for mosquito net.
• ¾” glazing thickness range.
• Exterior glazed sash.
• Triple weatherseal at interlock.
• Double weatherseal on the sides and upper parts of the window frame.
• Handle integrated with a sash.
• Sloped sill for better drainage of water.
• Firm sill leg and screen chamber that prevent warping and rippling.
• 3 ¼” depth of frame.

Number of cameras - 6
Mounting Depth - 2 3/4 inch (70 mm)
Reinforcing amplifier - U-shaped frame, U-shaped sash
Thickness dbl-glazed windows - 24 mm / 32 mm / 40 mm; 0.94 inch / 1.25 inch / 1.57 inch
Sealant - co-extruded
Seal color - Grey
Arched and non-standard shape - Yes
